Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Hose End 1-1/4" x 1-5/8-12
End Fittings

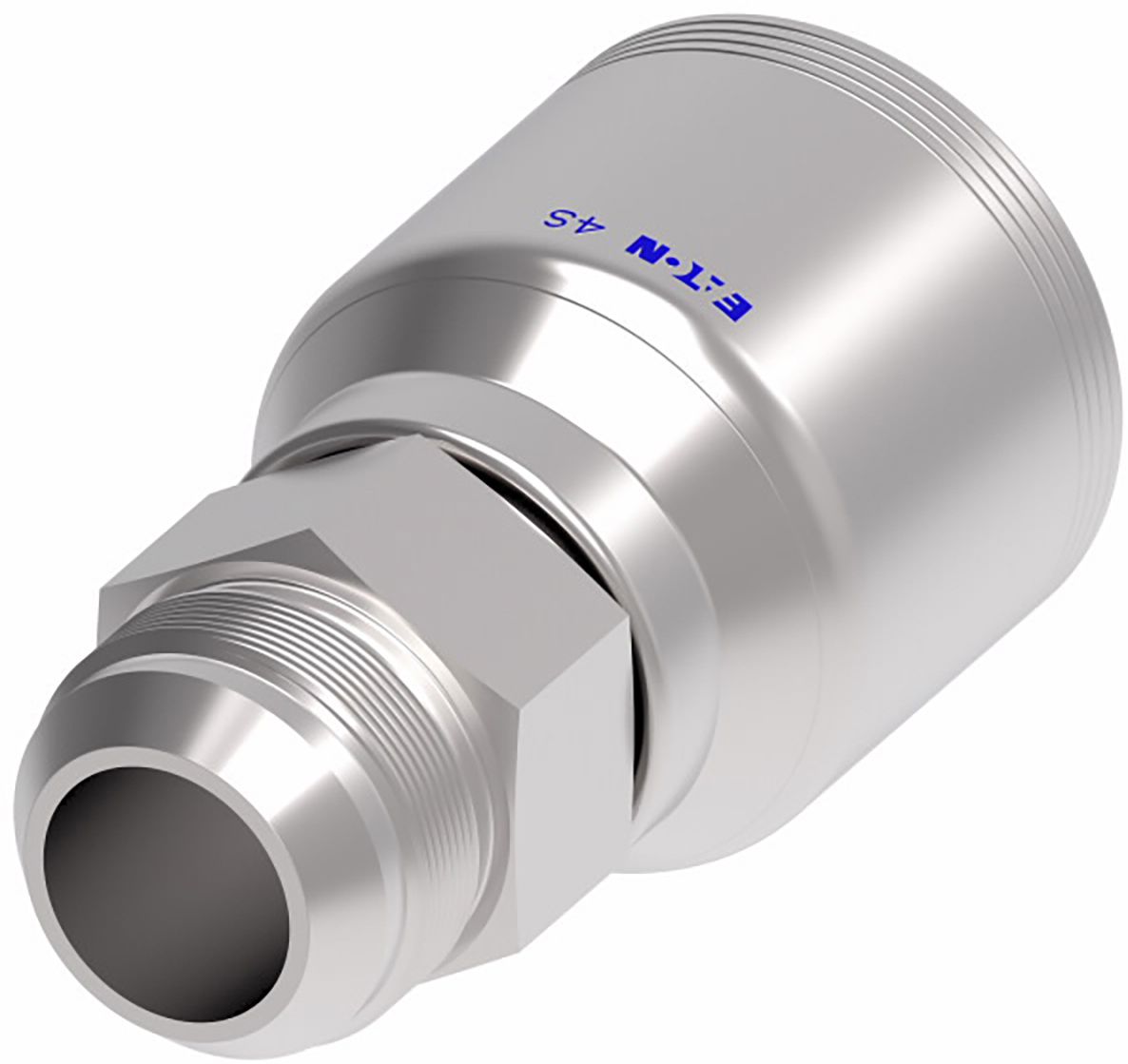

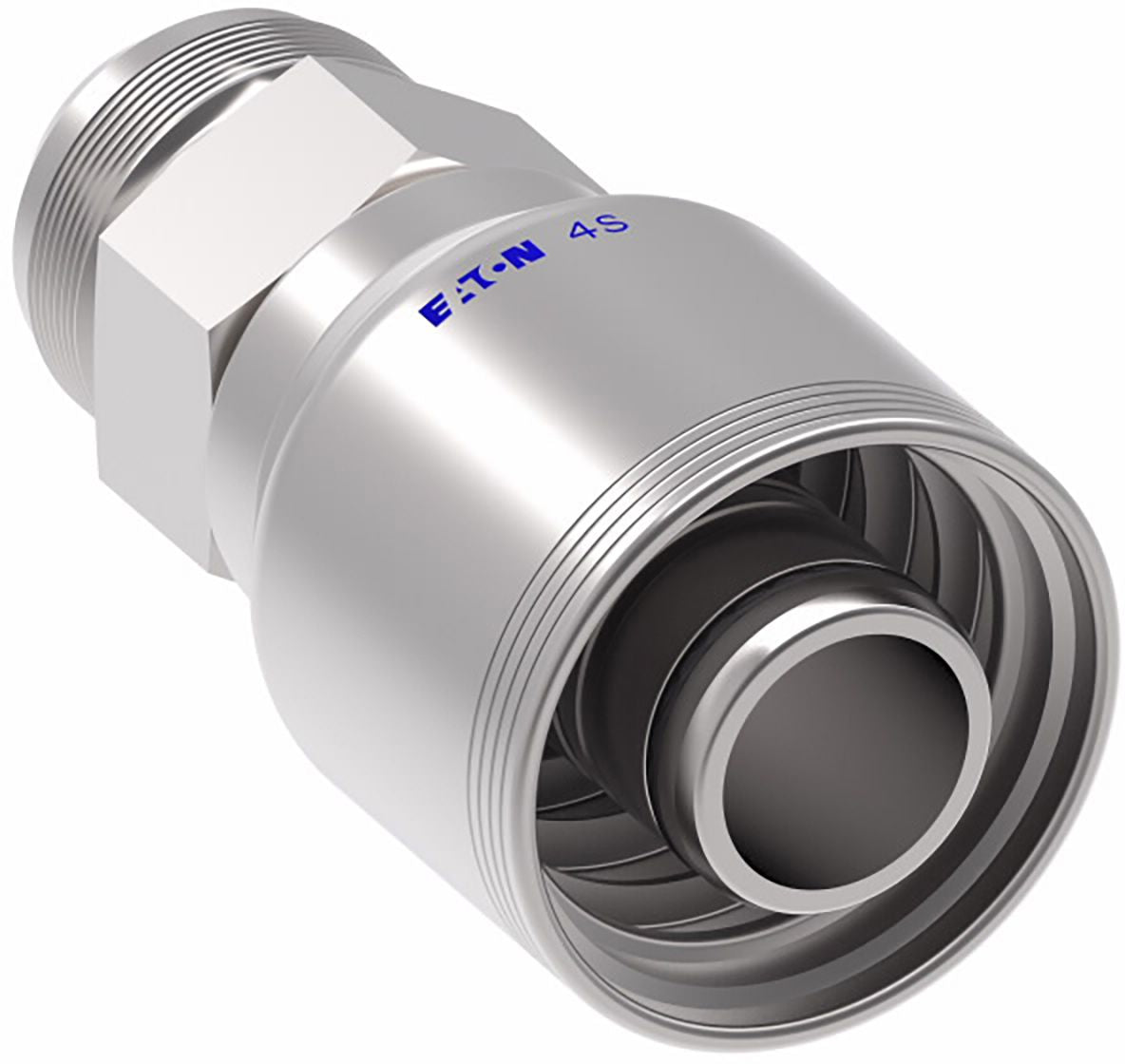

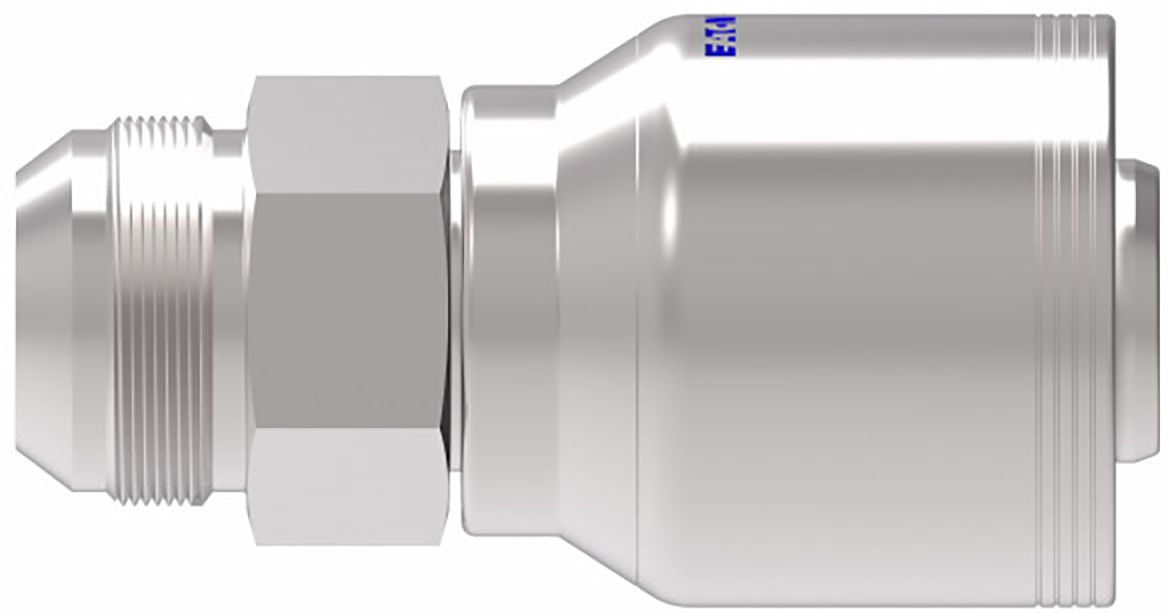

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid JIC 37°, 1-1/4 (-20) x 1-5/8-12 (-20)
(Pack of 1)

Item#: 1543118

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-26

Frequently Bought Together


Z Series Crimp-On Hose End 1" x 1-5/16-12

Item#: 16627

Z Series Crimp-On Hose End 3/8" x 1/2-14

Item#: 16602

Z Series Crimp-On Hose End 1/2" x 3/4-16

Item#: 16672

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12

Item#: 62893

Hydraulic Hose Protector 6 x 3" Yellow

Item#: 62380

Ball Check Grease Fitting 90°

Item#: 6203

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Item#: 84284

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Utility Knife, Folding , 4" Closed

Item#: FA5474

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543118
Manufacturer Model #: 4SA20MJ20
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1-1/4 (-20) "
Dash Size -20
Gender Male
Fitting End Type Rigid
Fitting Angle Straight
Fitting Dimension B (Working End) 1-5/8-12 (-20)
Weatherhead No. 4SA20MJ20
SAE Code J1176
Hex Size 1.6875 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 2.38 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.86 lb
