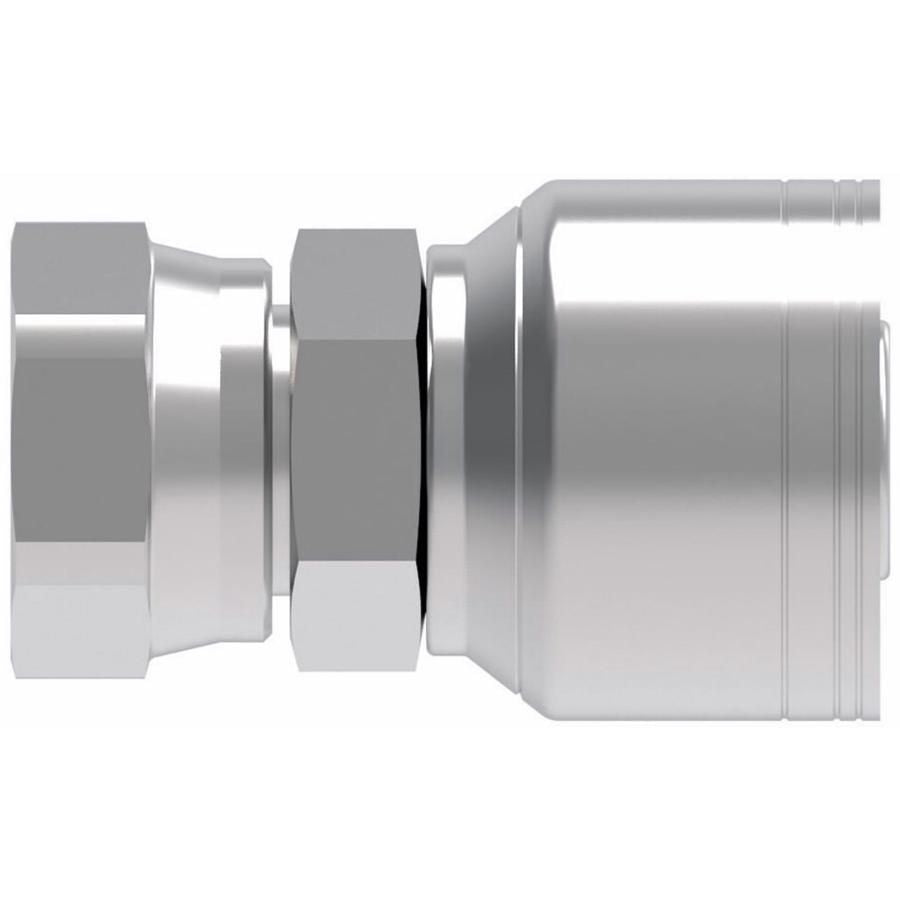

Z Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37° Flare, 1 (-16) x 1-5/16-12 (-16)
(Pack of 1)

Item#: 16627

Danfoss®

Create a strong, reliable seal with this crimp-on hose end. These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines, withstanding high pressure and preventing leaks. Typically used for hydraulic systems, industrial machinery and automotive applications.

Read More
Check Availability

Catalog page#: 8-12, 8-22

Frequently Bought Together


Z Series Crimp-On Hose End 3/8" x 1/2-14

Item#: 16602

Z Series Crimp-On Elbow 90° 3/8" x 11/16-16

Item#: 16742

Z Series Crimp-On Hose End 1/2" x 1-14

Item#: 16710

DOT Swivel Run Tee Male Brass 1/4 x 1/4-18 x 1/4"

Item#: 28984

DOT Branch Tee Male Brass 1/2 x 1/2 x 3/8-18

Item#: 28991

DOT Connector Male Brass 3/16 x 1/8-27

Item#: 28966

DOT Branch Tee Male Brass 3/8 x 3/8 x 1/4-18

Item#: 28989

DOT Swivel Run Tee Male Brass 1/4 x 1/4-18 x 1/4"

Item#: 28984

DOT Branch Tee Male Brass 1/2 x 1/2 x 3/8-18

Item#: 28991

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

Face Seal O-Ring Buna-N 0.489 x 0.07"

Item#: 52094

Crimp-On Coupling 1/2" x 13/16-16

Item#: 51142KH

Hose Clamp 304 SS 11/16 to 1-1/2"

Item#: 86727

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Item#: 84284

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Product Description

Create a strong, reliable seal with this crimp-on hose end. These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines, withstanding high pressure and preventing leaks. Typically used for hydraulic systems, industrial machinery and automotive applications.

Technical Specifications

Item#: 16627
Manufacturer Model #: 1AA16FJ16
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Female
Fitting End Style JIC 37 Degree Flare
Fitting End Type Swivel
Fitting Angle Straight
Fitting Dimension B (Working End) 1-5/16-12 (-16)
Weatherhead No. 16Z-616
O.D. Tube Size 1
Size (-16)X(-16)
Hex Size 1-1/2 "
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.9 lb
