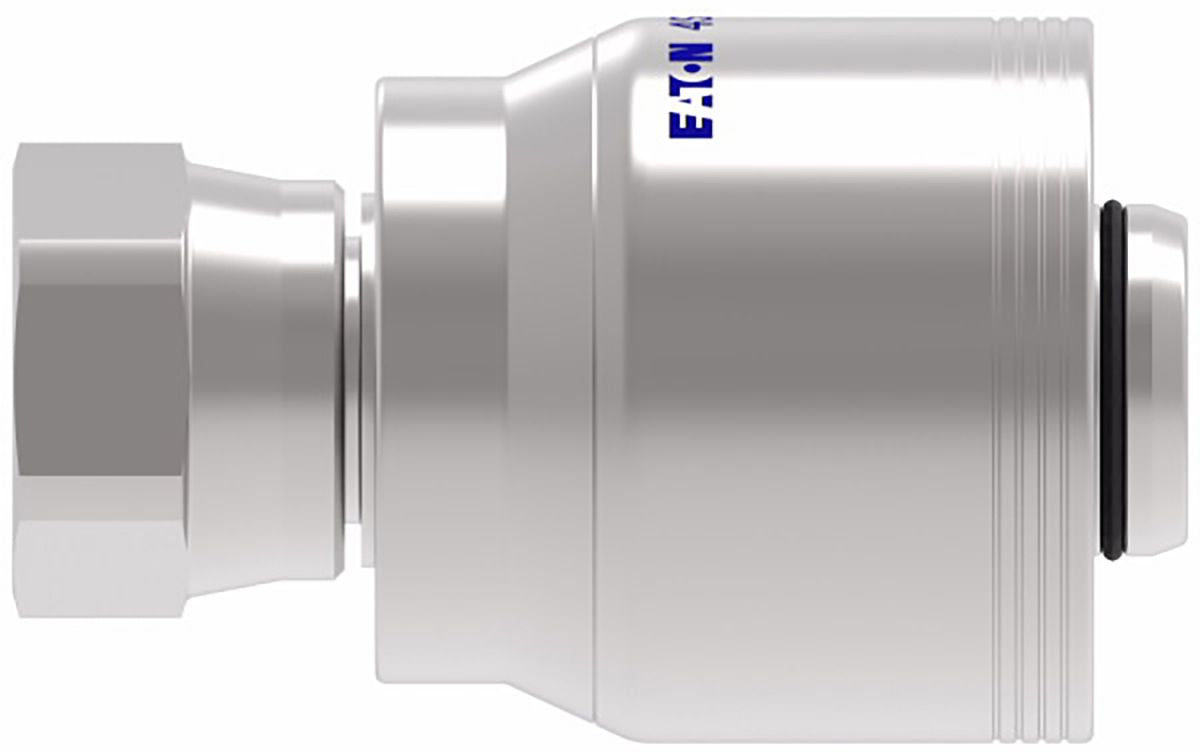

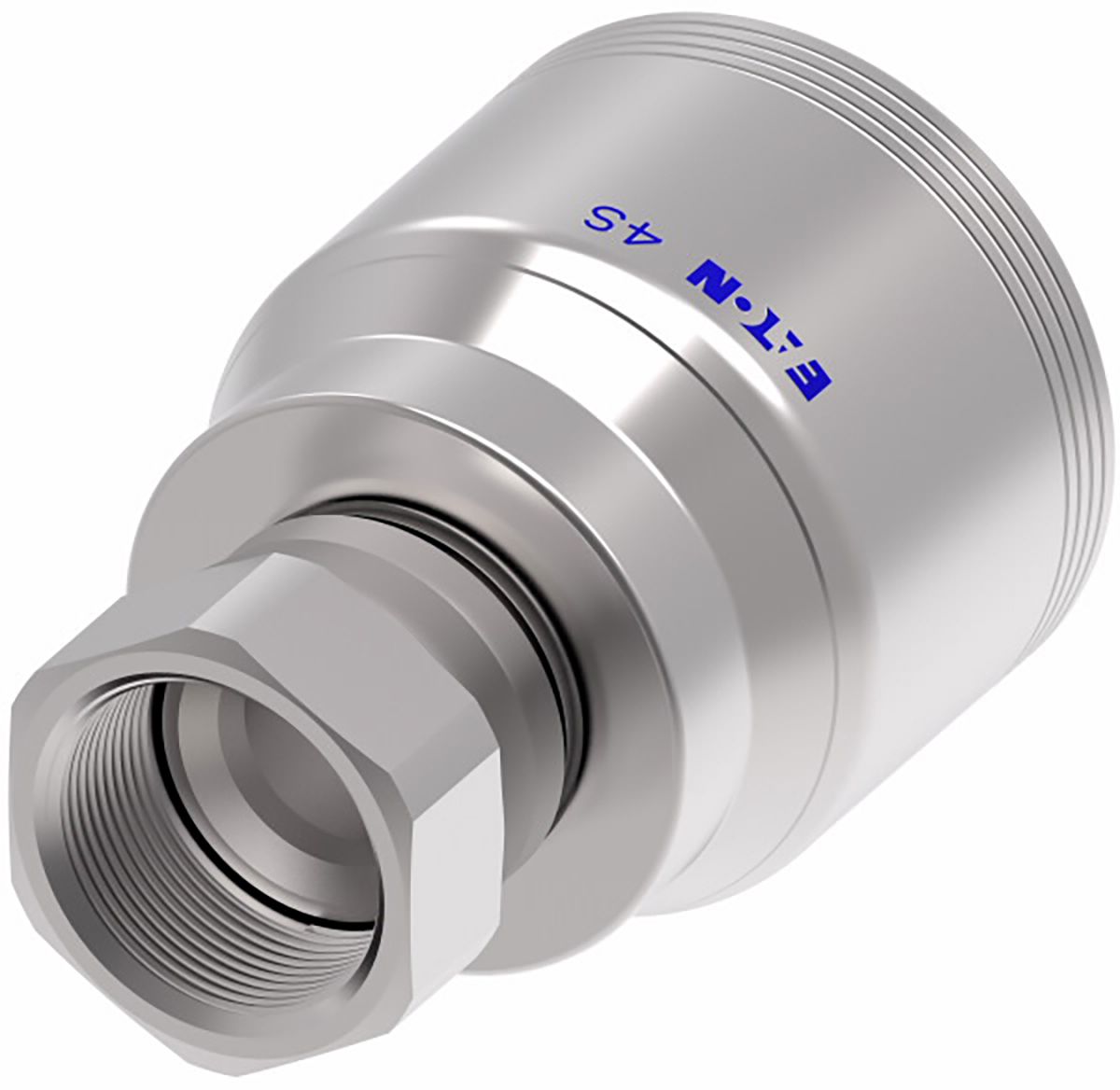

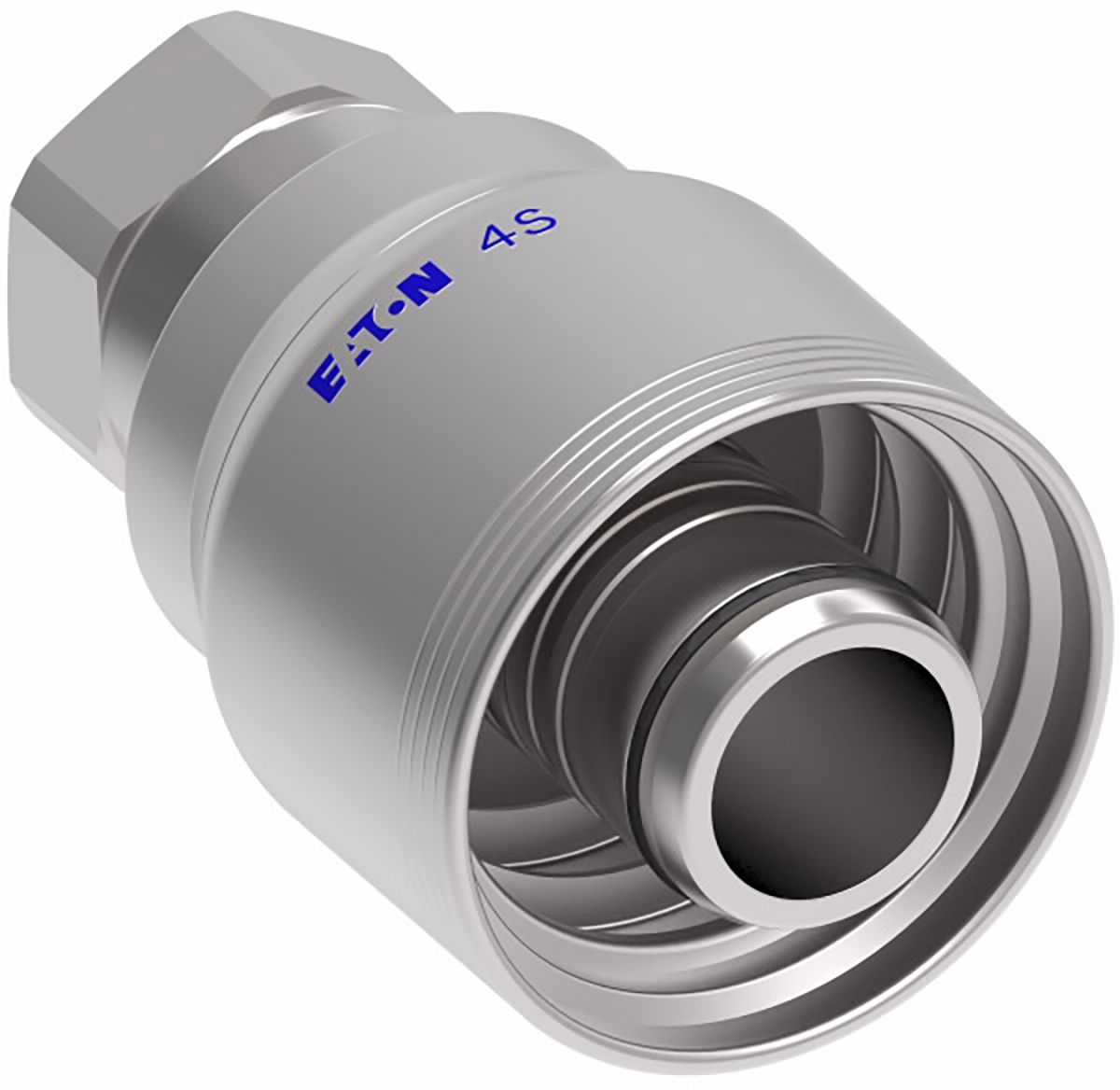

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1 (-16) x 1-5/16-12 (-16)
(Pack of 1)

Item#: 1542997

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-24

Frequently Bought Together

U Series Crimp-On Hose end 1

Z Series Crimp-On Hose End 1/2" x 1-14

Item#: 16710
Z Series Crimp-On Elbow Flare 45° 1/4

Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16

Item#: 16636
Crimp-On Hose Coupling 3/4 x 1

Crimp-On Hose Coupling 3/8" x 3/8-18

Item#: 88311KH
Hydraulic Quick Connect Coupler 3/4

Hydraulic Quick Connect Coupler 1/2" x 1/2-14

Item#: 84601
Straight Thread O-Ring Buna-N 0.236 x 0.07

Straight Thread O-Ring Buna-N 0.924 x 0.116"

Item#: 93619
Straight Thread O-Ring Buna-N 0.236 x 0.07

Straight Thread O-Ring Buna-N 0.351 x 0.072"

Item#: 93614
Super 77 Hose Clamps 300 Series Stainless Steel bands with 305 Series Stainless Steel Screw Size # 76 2-1/4-5-3/16 x 1/2

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 11/16 to 1-1/2"

Item#: 86727
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
Utility Knife, Folding , 4

Utility Knife, Folding , 4" Closed

Item#: FA5474
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542997
Manufacturer Model #: 4SA16FJ16
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Female
Fitting End Type JIC 37
Fitting Angle Straight
Fitting Dimension B (Working End) 1-5/16-12 (-16)
Weatherhead No. 4SA16FJ16
SAE Code J1176
Hex Size 1.625 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 1.94 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.09 lb
