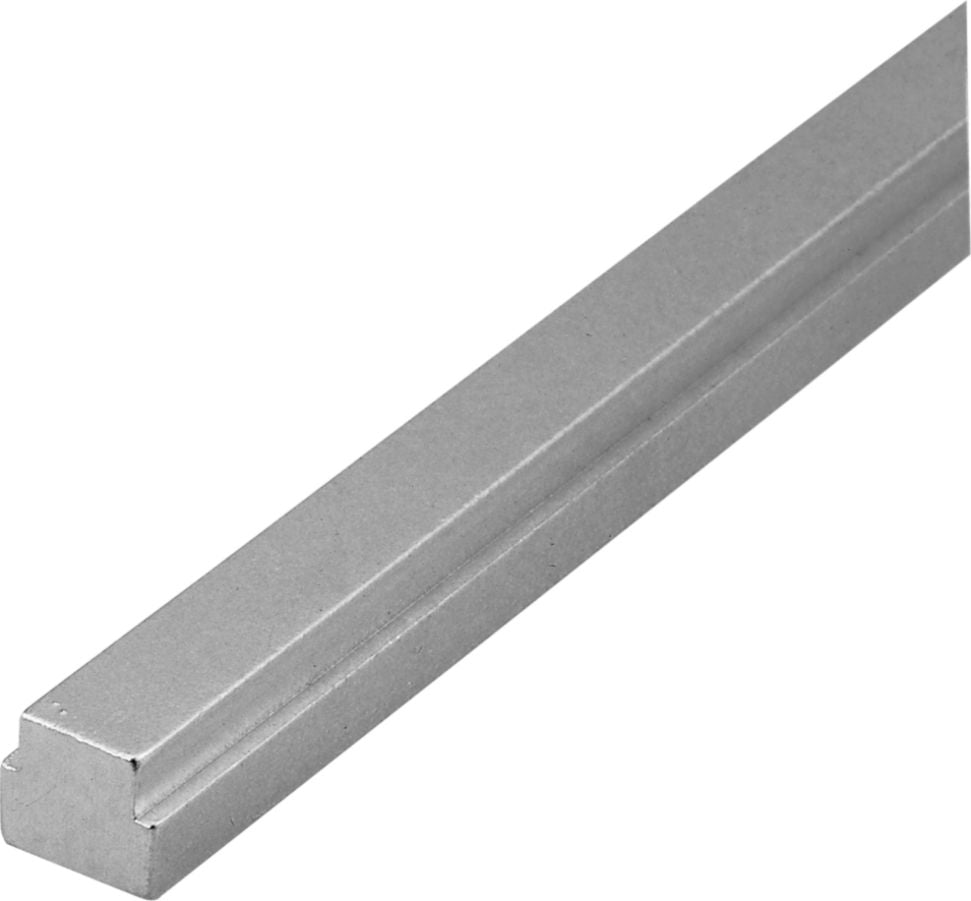

ASTM A108 Step Keystock, Type 1, Steel, 3/8" Base Width and 3/16" Height, 5/32" Step Height and 5/16" Width, 12" Length
(Pack of
1)
SKU:55843 Item#: 55843
• Manufactured of Type 1018 Cold Finished Steel
• Oversized stock, ground down to dimensions per tolerances below
• Zinc-plated for corrosion resistance
12" pre-cut lengths
Type 1 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.003" to +0.003"
Step height and base height dimensions: –0.004" to +0.004"
Type 2 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.005" to +0.005"
Step height and base height dimensions: –0.005" to +0.005"
• Use for couplings, gears, sheaves, sprockets, pulleys or anything that keys to a shaft
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-60
Frequently Bought Together
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
ASTM A108 Keystock Rectangular 5/8 x 3/4"
Couldn't load pickup availability
ASTM A108 Keystock Rectangular 1/2 x 3/4"
Couldn't load pickup availability
ASTM A582/A479 Keystock Square 300 SS 9/16"
Couldn't load pickup availability
Hair Cotter and Lynch Pin Assortment 150 Pieces
Couldn't load pickup availability
Hammerlock Cotter Pin 3/32 x 2"
Couldn't load pickup availability
Hammerlock Cotter Pin 1/4 x 3"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Product Description
• Manufactured of Type 1018 Cold Finished Steel• Oversized stock, ground down to dimensions per tolerances below
• Zinc-plated for corrosion resistance
12" pre-cut lengths
Type 1 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.003" to +0.003"
Step height and base height dimensions: –0.004" to +0.004"
Type 2 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.005" to +0.005"
Step height and base height dimensions: –0.005" to +0.005"
• Use for couplings, gears, sheaves, sprockets, pulleys or anything that keys to a shaft
Technical Specifications
| Item#: | 55843 |
|---|---|
| Size | 3/8 x 5/16 " |
| Length | 12 " |
| Style | 1 |
| Material | Carbon Steel |
| Type | Standard |
| Step Width | 5/16 " |
| Base Width | 3/8 " |
| Step Height | 5/32 " |
| Base Height | 3/16 " |
| Finish | Bright Zinc |
| Grade | C1018 |
| Specifications | ASTM-A-108 |
| Length Tolerance | +.125 / -.125" |
| Rockwell Hardness | Not Specified |
| Thickness Tolerance | A or C Dimension '+/-.003"; B or D Dimension '+/-.004" |
| UNSPSC #: | 31163208 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
