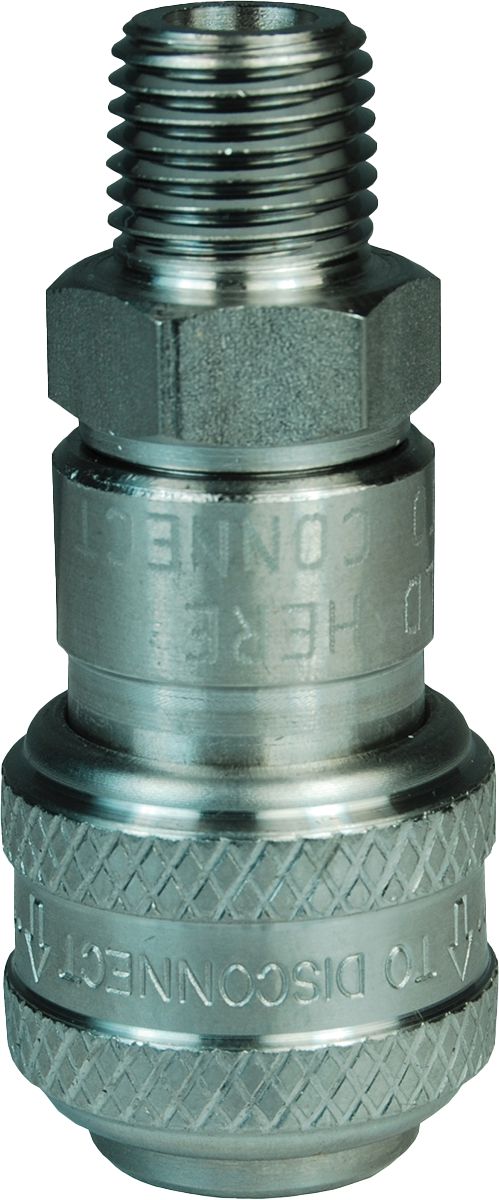

D-Series Industrial Pneumatic Quick Disconnect Coupler, Automatic, 303 Stainless Steel, Male NPTF, 1/2" Body Size, 1/2-14 Thread Size
(Pack of
1)
SKU:1677208 Item#: 1677208
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/16 x 5/16"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 1/4-18 (-4)
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1677208 |
|---|---|
| Manufacturer Model #: | 4DM4-S |
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/2 " |
| Thread Style | NPTF |
| Thread Size | 1/2 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 3.17 " |
| Seal Material | Nirtile |
| Hex Size | 1-1/16 " |
| Dixon Number | 4DM4-S |
| UNSPSC #: | 31163101 |
| TAA Compliant: | Yes |
| Weight: | 0.55 lb |
