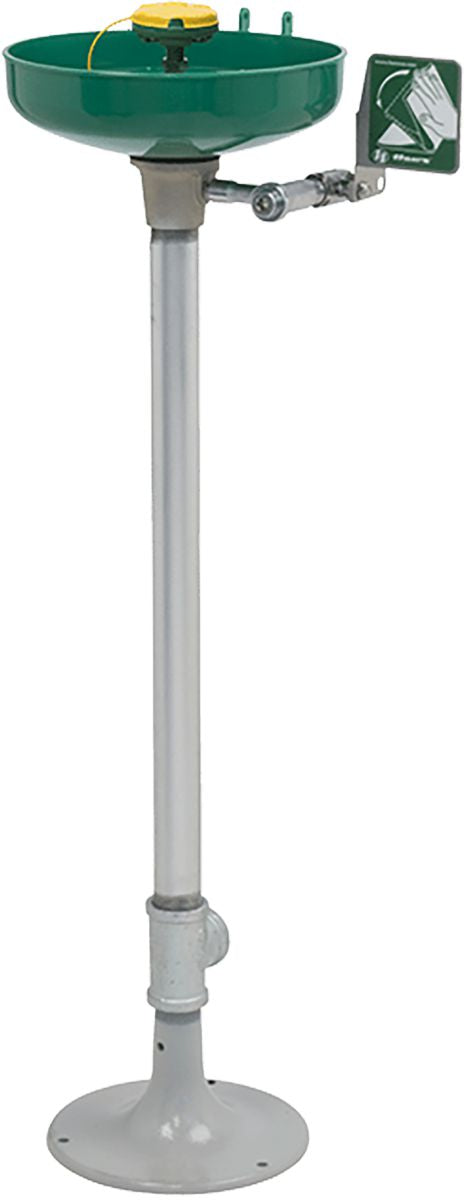

Axion MSR Pedestal Mount Eye/Face Wash Station, Plastic, Stainless/Galvanized Steel, 10 gpm Flow Rate, 11 in. Bowl, Green
(Pack of
1)
A pedestal eye/face wash includes a green ABS plastic 11" bowl. The eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes 1-1/4" Schedule 40 hot-dipped galvanized steel pipe and fittings along with powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor and 1-1/4" NPT galvanized stanchion
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT * ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Eye Wash Station Portable Pressurized
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Universal Three-Ply Heavyweight Sorbent Pads
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Silver
Couldn't load pickup availability
Red GT Series Extra Heavy Duty Wiper Roll
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix 0 Cal Berry
Couldn't load pickup availability
LionGrip 8mil Nitrile Glove Black X-Large
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Large, Case
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability

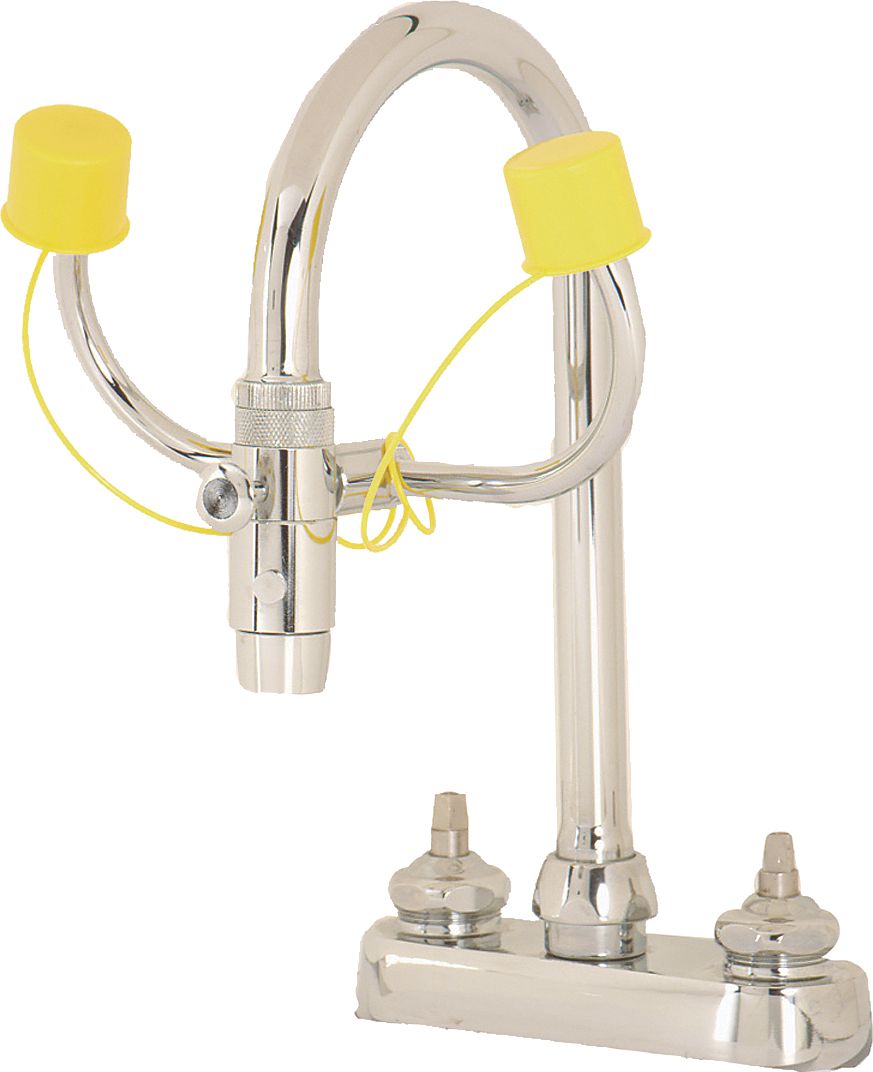

Faucet-Mount Eye Wash
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Axion MSR Corrosion Resistant Pedestal Eye/Face Wash
Couldn't load pickup availability
Product Description
A pedestal eye/face wash includes a green ABS plastic 11" bowl. The eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes 1-1/4" Schedule 40 hot-dipped galvanized steel pipe and fittings along with powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor and 1-1/4" NPT galvanized stanchion
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT * ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647978 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Stainless Steel/Galvanized Steel |
| Mount Style | Pedestal |
| Color | Green |
| Eyewash Bowl Diameter | 11 " |
| Width | 15 " |
| Height | 38 " |
| Eye Wash Material | Plastic |
| Body Material | Plastic |
| Includes | Dust Cover, Floor Flange, Inspection Tag, Pipe and Fittings, Universal Identification Sign |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
