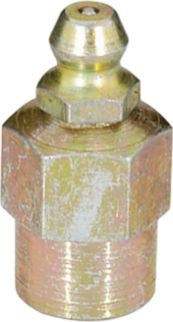

Ball Check Grease Fitting, Straight, Hardened Steel, Female Thread, 1/8" Pipe Thread, 15/16" Length
(Pack of
10)
SKU:90492 Item#: 90492
• Ball in tip of fitting keeps out dirt and foreign matter
• Enlarged inner passage admits more lubricant and helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – all threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Accepts all standard makes of hydraulic couplers
• Universal application – Industrial motive equipment
Couldn't load pickup availability
Catalog page#: 10-2
Frequently Bought Together
DOT Compression Connector Male Brass 1/4 x 1/4"
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 3/8-18
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Grease Fitting Assortment Ball Check Type
Couldn't load pickup availability
Pistol Grip Grease Gun Model 555-E
Couldn't load pickup availability
Grease Fitting Assortment Ball Check Type
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
• Ball in tip of fitting keeps out dirt and foreign matter• Enlarged inner passage admits more lubricant and helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – all threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Accepts all standard makes of hydraulic couplers
• Universal application – Industrial motive equipment
Technical Specifications
| Item#: | 90492 |
|---|---|
| Category | Grease Fittings |
| Fitting Type | Ball Check Type |
| Group | 1/8" Pipe Thread |
| Fitting Angle | Straight - Female Thread |
| Fitting Description | Straight - Female Thread |
| Length | 15/16 " |
| Size | 1/8X15/16 |
| Thread Type | 1/8" Pipe Thread |
| Material | Hardened Steel |
| UNSPSC #: | 40141736 |
| TAA Compliant: | No |
| Weight: | 0.28 lb |
