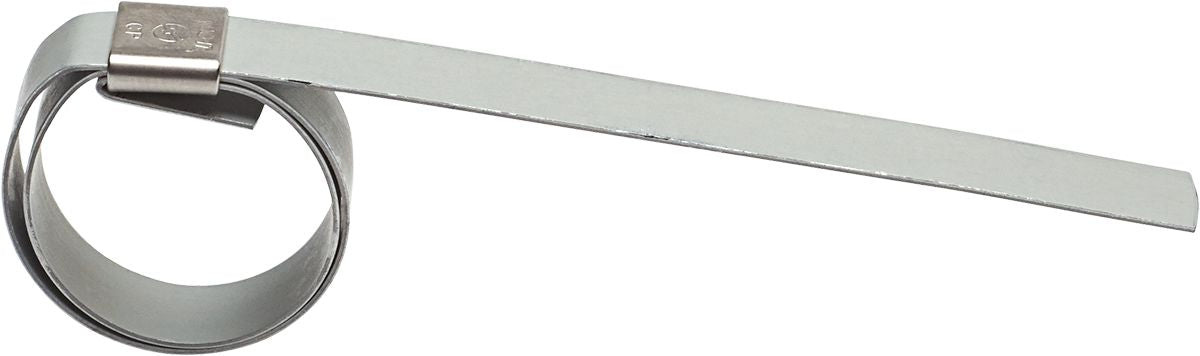

Band-It Clamp High-Carbon Steel 2-1/4 x 5/8"
(Pack of
10.0)
• Made of high-carbon electrolytic galvanized steel to resist corrosion• 1/32" thick band
• Designed for industrial and production equipment

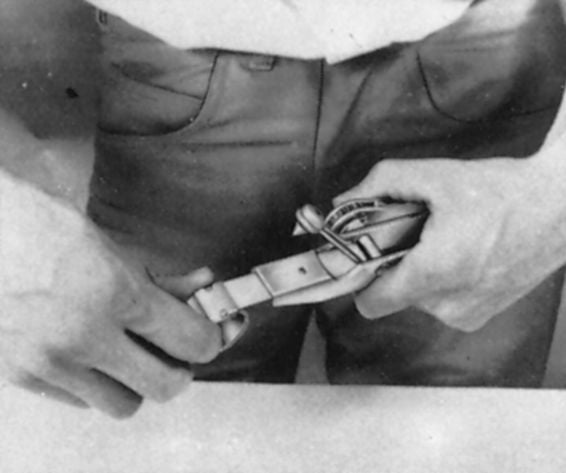

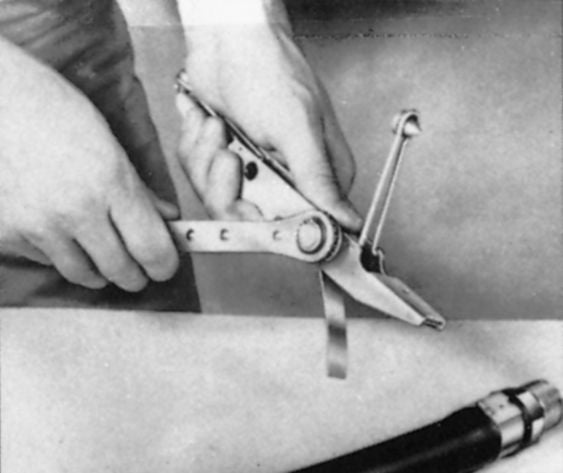

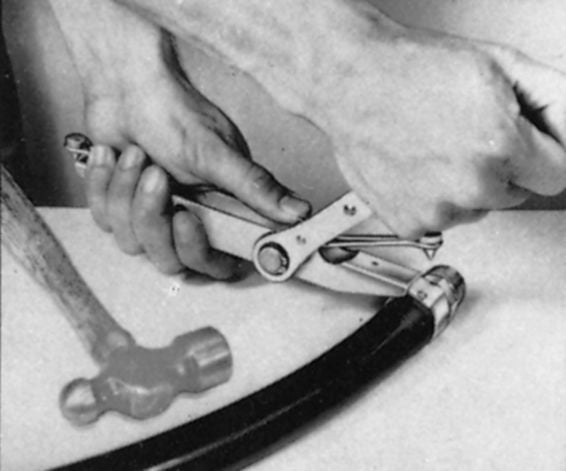

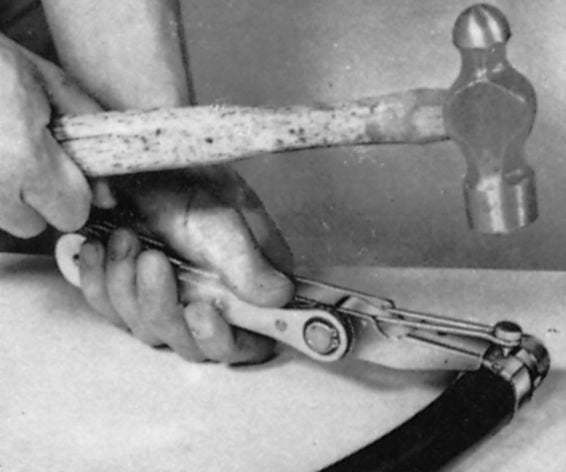

1. Insert clamp in tool, then insert wrench assembly. If you prefer, install wrench assembly before clamp is inserted.2. Start pumping ratchet wrench forward until proper tension has been applied.3. Place punch on clamp buckle and, while holding tension with ratchet wrench, lock clamp by striking punch with hammer until clamp is tight.4. While holding tension with wrench, swing tool up against buckle, then backward to break off clamp tail. To loosen clamp tail, wind until tail is free. Remove mandrel-wrench assembly.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 22-8
Frequently Bought Together
Constant Torque Hose Clamp SS 4-1/4 to 5-1/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #28 1-1/4 to 2-1/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-3/4 to 3-5/8"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 4-1/4 to 5-1/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #28 1-1/4 to 2-1/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-3/4 to 3-5/8"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Grease Gun Thin Nose Hydraulic Coupler 1/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Made of high-carbon electrolytic galvanized steel to resist corrosion• 1/32" thick band• Designed for industrial and production equipment
1. Insert clamp in tool, then insert wrench assembly. If you prefer, install wrench assembly before clamp is inserted.2. Start pumping ratchet wrench forward until proper tension has been applied.3. Place punch on clamp buckle and, while holding tension with ratchet wrench, lock clamp by striking punch with hammer until clamp is tight.4. While holding tension with wrench, swing tool up against buckle, then backward to break off clamp tail. To loosen clamp tail, wind until tail is free. Remove mandrel-wrench assembly.
Technical Specifications
| Item#: | 81191 |
|---|---|
| Category | Band-It Clamp |
| Material | Galvanized High-Carbon Steel |
| Size | 2-1/4 " |
| I.D. | 2-1/4 " |
| Minimum Diameter | 2-1/4 " |
| Band Width | 5/8 " |
| Width | 5/8 " |
| Thickness | 1/32 " |
| UNSPSC #: | 31162906 |
| TAA Compliant: | Yes |
| Weight: | 1.16 lb |
