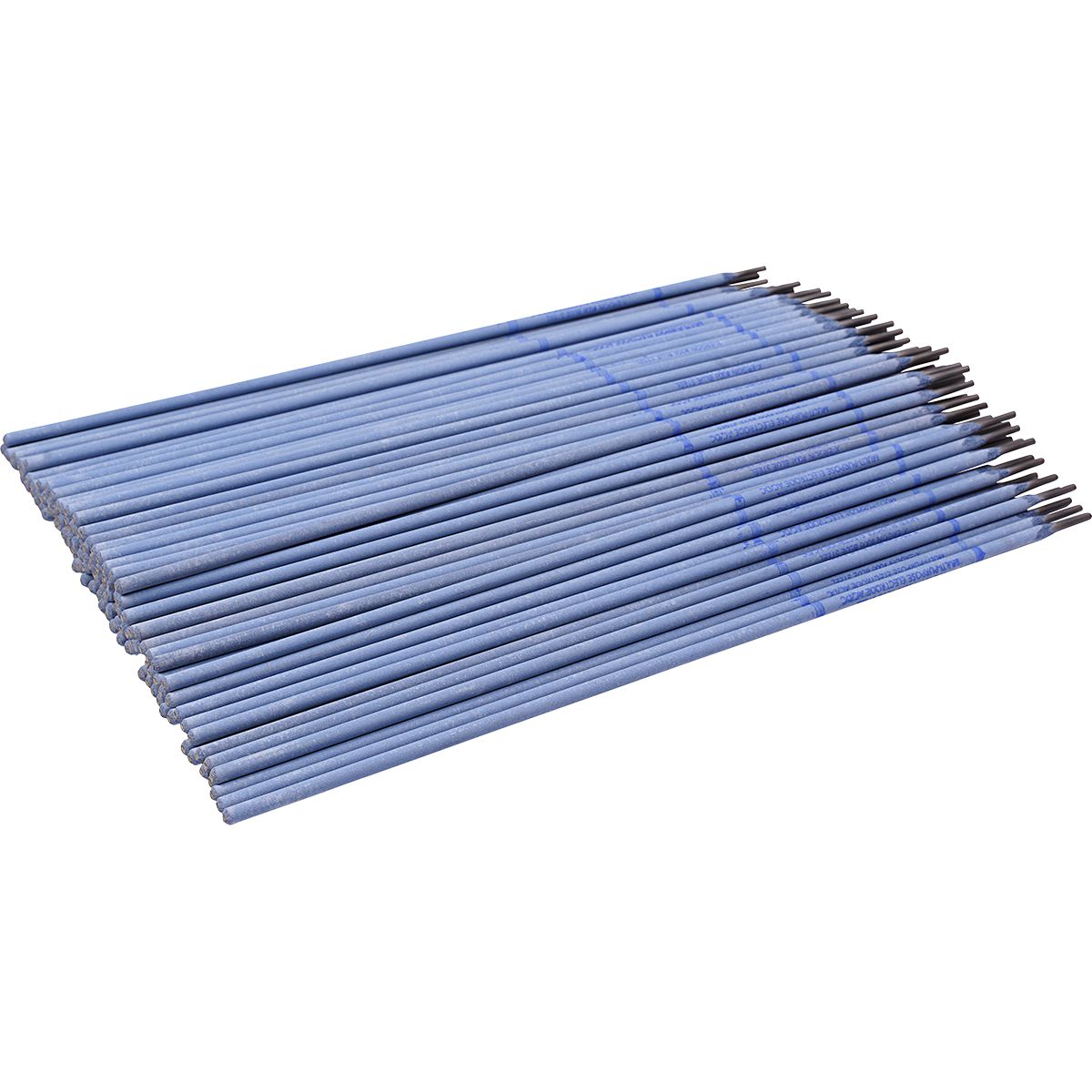

Blue Steel All Position High Strength Elongation 42% Polarity Dcep/Ac Tensile 89000 To 122000 Will Work Harden To 37Rc
(Pack of
10)
The true workhorse of the all-steel electrodes. It is ideal for welding a variety of steels in all positions
• Superior Arc Characteristics – The Chem-A-Tized² coating produces a spray type arc with a smooth bead, little to no spatter and a self-releasing slag
• High Strength – Produces weld deposits that are crack-free and high in strength and elongation
• Multi-Purpose – Can be used to join any combination of all weldable grades of steels - cast steel, stainless, low alloy, mild, manganese, tool or spring steel
• Can be used on AC or DC
• Withstands stress and vibration
• Easy restrike
Remove defective metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DCEP (DC+) current. Use a contact or a minimum arc length with a weave or stringer bead technique. Preheat should be used when the base metal requires it. For vertical-up welds reduce amperage slightly and use a modified weave technique. Chip the slag between multipass welds. Allow to cool slowly.
• Tensile Strength: – As deposited: 89,000 PSI/613 Mpa – Work Hardened: 122,000 PSI/841 Mpa
• Hardness: – As Deposited: 95 Rb – Work Hardened: 37 Rc
• Elongation: 42%
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-124
Frequently Bought Together
333 Dissimilar Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
601Xl Fc Multi Steel Flux Core Mig Wire .035X33LB
Couldn't load pickup availability
3333 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
The true workhorse of the all-steel electrodes. It is ideal for welding a variety of steels in all positions• Superior Arc Characteristics – The Chem-A-Tized² coating produces a spray type arc with a smooth bead, little to no spatter and a self-releasing slag
• High Strength – Produces weld deposits that are crack-free and high in strength and elongation
• Multi-Purpose – Can be used to join any combination of all weldable grades of steels - cast steel, stainless, low alloy, mild, manganese, tool or spring steel
• Can be used on AC or DC
• Withstands stress and vibration
• Easy restrike
Remove defective metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DCEP (DC+) current. Use a contact or a minimum arc length with a weave or stringer bead technique. Preheat should be used when the base metal requires it. For vertical-up welds reduce amperage slightly and use a modified weave technique. Chip the slag between multipass welds. Allow to cool slowly.
• Tensile Strength: – As deposited: 89,000 PSI/613 Mpa – Work Hardened: 122,000 PSI/841 Mpa
• Hardness: – As Deposited: 95 Rb – Work Hardened: 37 Rc
• Elongation: 42%
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG00640000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 122,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 42 % |
| Hardness | 37 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.95 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
