Home Hardware Bolt, Nut and Cotter Anchor Shackle, 2", 70,000 lb WLL
Hardware

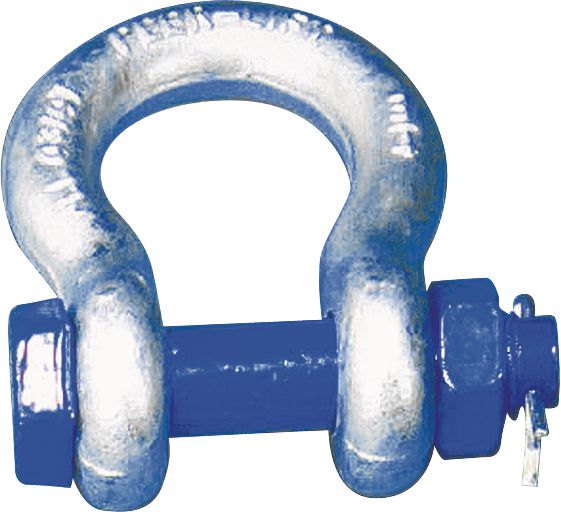

Bolt, Nut and Cotter Anchor Shackle, 2", 70,000 lb WLL
(Pack of 1.0)

Lawson Products

The nut holds the bolt securely while the cotter pin prevents the nut from backing off.
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 3
CAUTION: Do not exceed working load limits.

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Turned Eyebolt, Stainless Steel, 1/2" x 4"

Item#: 1442437

Eye Bolts, Machinery, 5/16 x 1-1/8"

Item#: 85517

Shoulder Eyebolt, Machinery, Self-Colored, M27 x 3.0 x 70

Item#: 1442291

Wire Rope, Steel, Bare, 7x19, 5/16", 9,800 lbs Breaking Strength

Item#: 1439120

Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength

Item#: 1439630

Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439135

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429888

Screw Pin Anchor Shackle, 3/16", 667 lb WLL

Item#: 1424877

Screw Pin Long Reach Shackle, 3/4", 10,000 lb WLL

Item#: 1429929

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Lock Washer Alloy Steel 3/8"

Item#: A530

Product Description

The nut holds the bolt securely while the cotter pin prevents the nut from backing off.
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 3
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1424908
Type Anchor Shackle
Style Bolt, Nut and Cotter
Body Material Carbon Steel
Finish Galvanized
Size 2 "
Working Load Limit 70,000 lb
Pin Diameter 2-1/4 "
Pin Material Alloy Steel
Width Between Eyes 3-1/4 "
Bow Width 5-1/4 "
Depth 7-3/4 "
UNSPSC #: 31162803
TAA Compliant: No
Weight: 0.0 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
