Home Hardware Bolt, Nut and Cotter Long Reach Shackle, 5/8", 7,000 lb WLL
Hardware

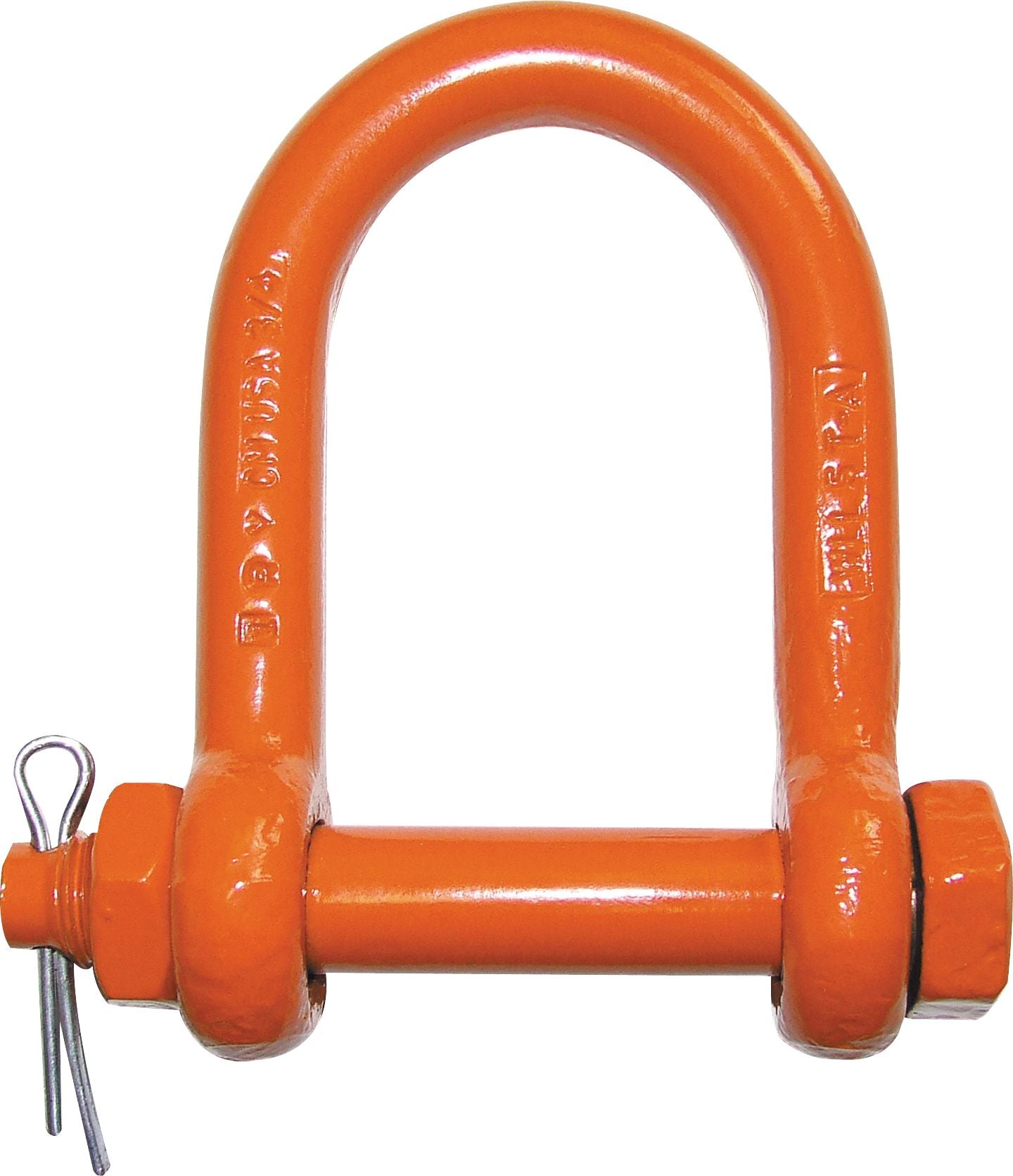

Long Reach Shackle, Bolt, Nut and Cotter, 5/8", 7,000 lb WLL, Alloy Steel, Self Colored
(Pack of 3)

CM®

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Read More

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 15-24

Frequently Bought Together


Shoulder Eyebolt, Machinery, Self-Colored, M20 x 2.5 x 57

Item#: 1442494

S-Hook Zinc Plated Heavy Steel 2-1/2" Length

Item#: 1599

Screw Pin Anchor Shackle, 1-1/4", 28,000 lb WLL

Item#: 14496

Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL

Item#: 1424880

Tarp Strap Epdm Rubber with Hooks 24" Long

Item#: 99562

Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439135

Bolt, Nut and Cotter Anchor Shackle, 1/4", 1,500 lb WLL

Item#: 1429914

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429888

Screw Pin Anchor Shackle, 3/16", 667 lb WLL

Item#: 1424877

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

Lock Washer Alloy Steel 3/8"

Item#: A530

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Product Description

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1429938
Type Long Reach Shackle
Style Bolt, Nut and Cotter
Body Material Alloy Steel
Finish Self Colored
Size 5/8 "
Working Load Limit 7,000 lb
Pin Diameter 3/4 "
Pin Material Alloy Steel
Width Between Eyes 2-1/4 "
Depth 4 "
UNSPSC #: 31162803
TAA Compliant: Yes

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
