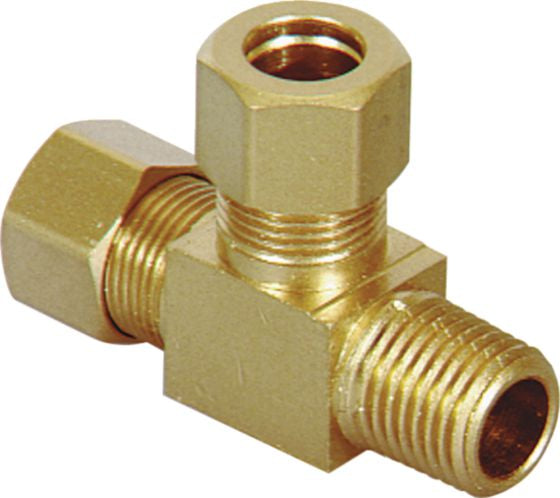

Compression Self-Align Run Tee, Brass, 1/4 x 1/8-27 x 1/4", Tube x Male NPT x Tube, 500PSI
(Pack of
5)
SKU:54782 Item#: 54782
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Tee Brass 1/2-14 x 1/2-14 x 1/2-14
Couldn't load pickup availability
Square Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)• Applications: Instrumentation, water, air and lubrication systems
Technical Specifications
| Item#: | 54782 |
|---|---|
| Fitting Type | Compression Selfalign |
| Configuration | Run Tee |
| Material | Brass |
| Connection Type A x B x C | Tube x Male NPT x Tube |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/8-27 |
| Fitting Dimension C | 1/4 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.48 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
