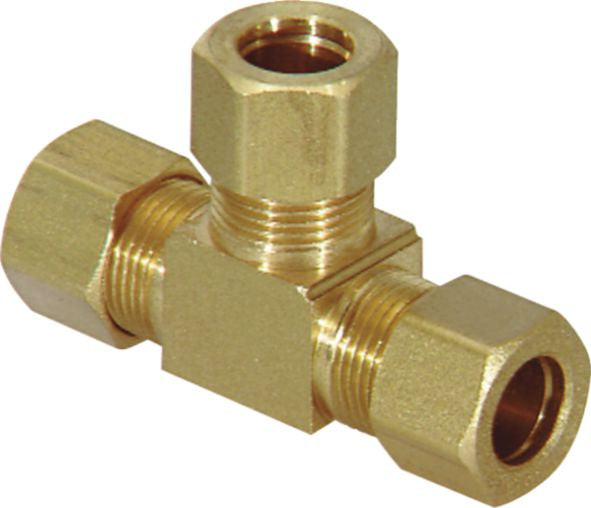

Compression Self-Align Union Tee, Brass, 1/4 x 1/4 x 1/4", Tube x Tube x Tube, 500PSI
(Pack of
5)
SKU:26678 Item#: 26678
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems
Couldn't load pickup availability
Catalog page#: 9-17
Frequently Bought Together
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)• Applications: Instrumentation, water, air and lubrication systems
Technical Specifications
| Item#: | 26678 |
|---|---|
| Fitting Type | Compression Selfalign |
| Configuration | Union Tee |
| Material | Brass |
| Connection Type A x B x C | Tube x Tube x Tube |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/4 " |
| Fitting Dimension C | 1/4 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.52 lb |
