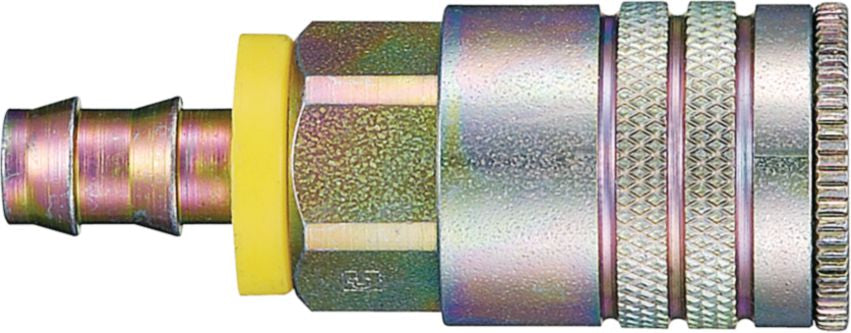

1/4" IND COUPLER, 3/8" P-LOC, BRASS
(Pack of
1)
SKU:1593586 Item#: 1593586
Standard or Industrial Interchange Design
• For low-pressure hydraulic, pneumatic and fluid lines
• Primarily used for air or gas line applications
• When used with Push-Lok type hose, couplers are reusable and require no ferrules or hose clamps
• Not recommended for high-pressure applications or for use with conventional hose
• To assemble, just lubricate the barb end and push the hose on
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hose End Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Product Description
Standard or Industrial Interchange Design• For low-pressure hydraulic, pneumatic and fluid lines
• Primarily used for air or gas line applications
• When used with Push-Lok type hose, couplers are reusable and require no ferrules or hose clamps
• Not recommended for high-pressure applications or for use with conventional hose
• To assemble, just lubricate the barb end and push the hose on
Technical Specifications
| Item#: | 1593586 |
|---|---|
| Manufacturer Model #: | 2FB3-B |
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | Brass |
| Hose I.D. | 3/8 " |
| Length | 2.49 " |
| Seal Material | Nitrile |
| Hex Size | 3/4 " |
| Locking Mechanism | 6 Ball |
| Flow | 27 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
