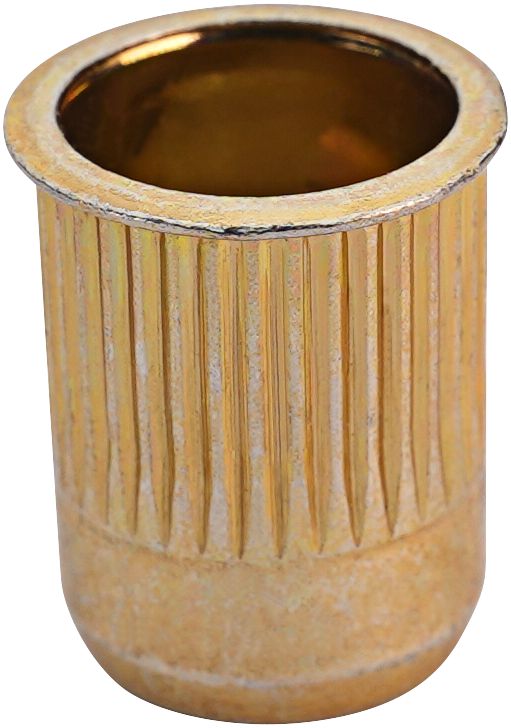

Diamond Grip II Threaded Insert #8-32
(Pack of
50.0)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-19
Frequently Bought Together
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-32
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51670 |
|---|---|
| Diameter | #8 |
| Thread Pitch | 32 |
| Grip Range | 0.020 – 0.080 " |
| Flange Type | Large Flange |
| Hole Size | 0.266 " |
| Pilot Drill Size | 17/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
