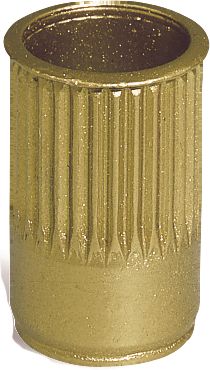

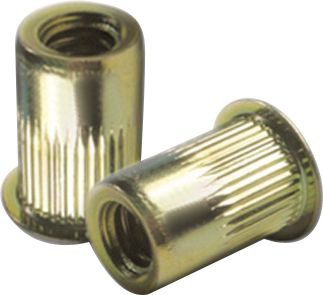

Diamond Grip II Threaded Insert #10-32
(Pack of
50.0)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 6-19
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall M5-0.8
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert M4-0.7
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Replacement Mandrel for SSG Tool 5/16-18
Couldn't load pickup availability
Rivet Nut Hand Tool 3/8-16 and 3/8-24
Couldn't load pickup availability
Riv-Float Rivet Nut Hand Tool M6-1
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51672 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 32 |
| Grip Range | 0.020 – 0.130 " |
| Flange Type | Large Flange |
| Hole Size | 0.297 " |
| Pilot Drill Size | 19/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Fine |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
