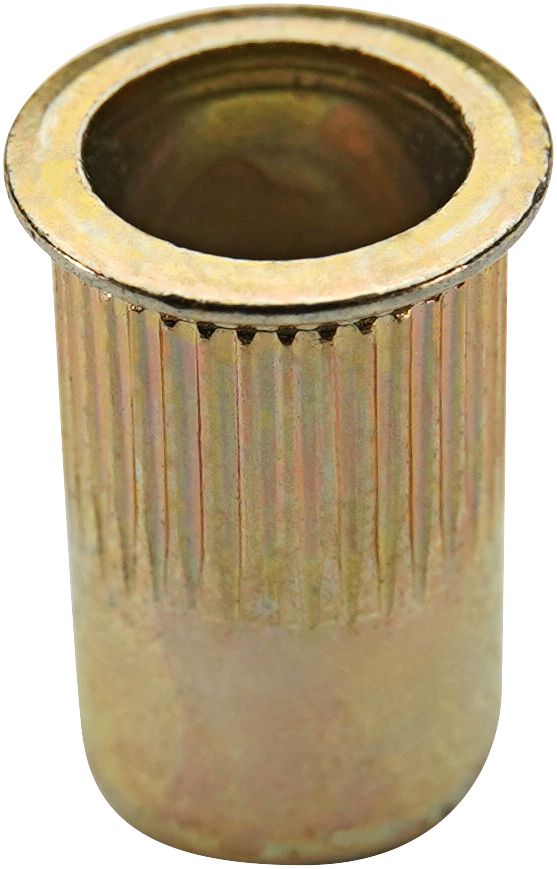

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Large Flange, Coarse Thread, 1/4-20, 0.027 to 0.165" Grip, 0.391" Hole
(Pack of
25)
SKU:51673 Item#: 51673
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-19
Frequently Bought Together
Diamond Grip II Threaded Insert 3/8-24
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M8-1.25
Couldn't load pickup availability
Diamond Grip II Threaded Insert M10-1.5
Couldn't load pickup availability
Self-Drilling Screw Hex Head #12-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 1/4-20
Couldn't load pickup availability
Diamond Grip II Installation Kit M6-1
Couldn't load pickup availability
Conversion Kit Standard 5/16-18
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51673 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Grip Range | 0.027 – 0.165 " |
| Flange Type | Large Flange |
| Hole Size | 0.391 " |
| Pilot Drill Size | 25/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
