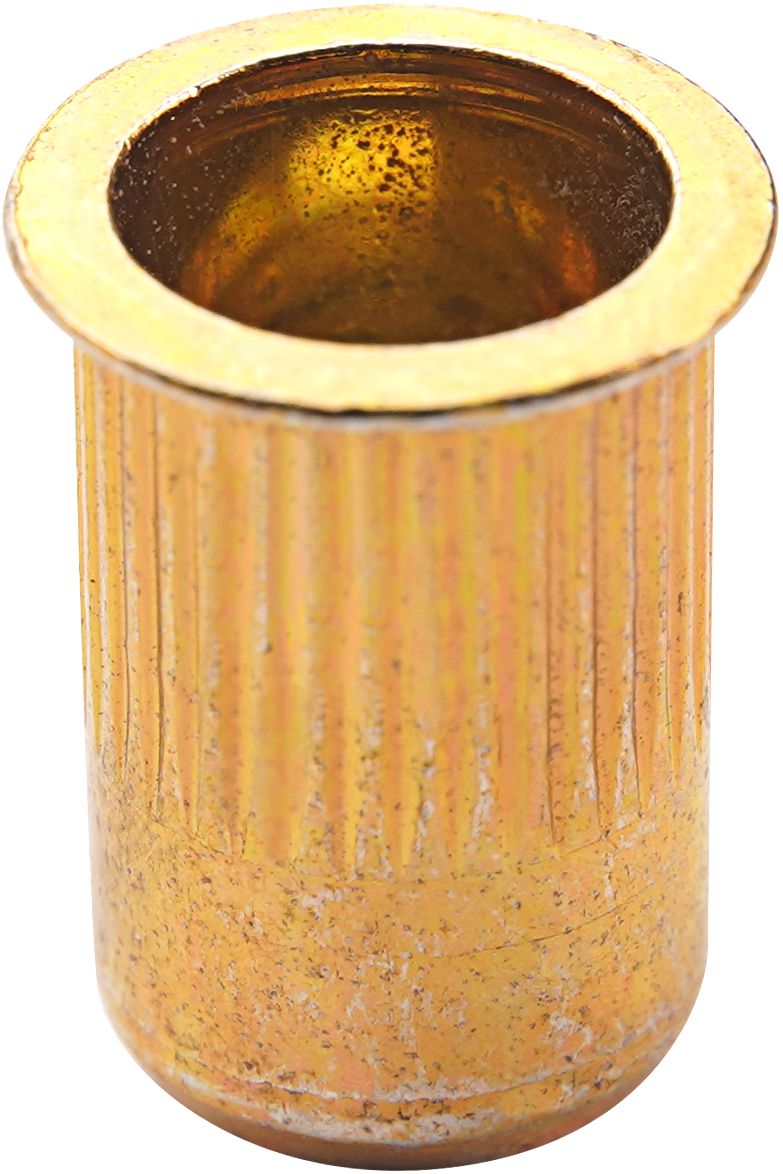

Diamond Grip II Threaded Insert 1/4-28
(Pack of
25.0)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 6-19
Frequently Bought Together

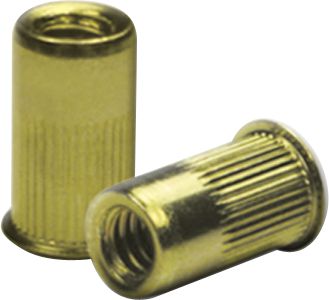

Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert M10-1.5
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-24
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Riv-Float Rivet Nut Hand Tool #10-32
Couldn't load pickup availability
Rivet Nut Hand Tool 5/16-24
Couldn't load pickup availability
Replacement Head Set for FLEX-5 Tool 3/8-16
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94735 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 28 |
| Grip Range | 0.027 – 0.165 " |
| Flange Type | Standard Flange |
| Hole Size | 0.391 " |
| Pilot Drill Size | 25/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Fine |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
