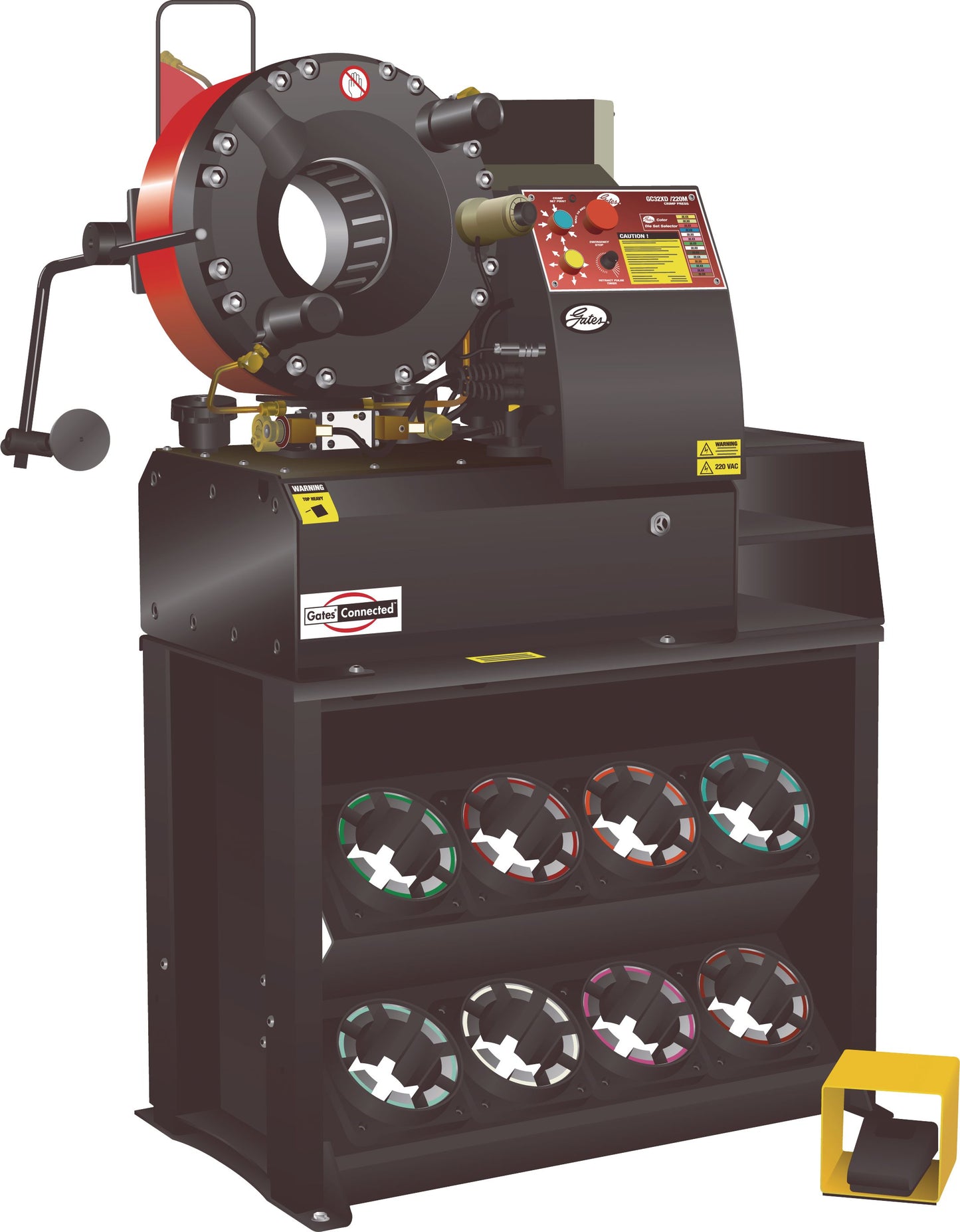

Equipment & Parts GC32-XD CRIMPER, 74807001
(Pack of
1)
SKU:1203836 Item#: 1203836
This new GC32-XD® crimper from Gates® quickly crimps every hose and coupling in the Gates® line. The open crimper head accommodates any Gates® hose construction or coupling configuration, including 2-1/2" Global MegaVac® return lines. It makes hose assemblies twice as fast as earlier Gates® crimpers.
Internally, the GC32-XD® uses a unique cloverleaf design that simply produces a better crimp. Unlike standard annular head configurations, the Gates® exclusive cloverleaf design reinforces the piston so the dies move smoother for more consistent crimps, without any taper in the crimp O.D.
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
• Dimensions: 37"H x 23"W 19-1/2"D
• Weight: 660 lbs.
• Motor: 5 hp
• Pump: 2 stage
• Power source: 208-260V, 45-65 Hz, 1 phase, 20 A
• Maximum operating pressure: 470 tons
• Stand (optional): (Item No. 1206386) 25-1/2"H x 31-3/4"W x 16-1/2"D (height adjustable)
Frequently Bought Together
Braided Collet Black
Couldn't load pickup availability
GC16 35-L Die
Couldn't load pickup availability
Braided Collet Green
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
This new GC32-XD® crimper from Gates® quickly crimps every hose and coupling in the Gates® line. The open crimper head accommodates any Gates® hose construction or coupling configuration, including 2-1/2" Global MegaVac® return lines. It makes hose assemblies twice as fast as earlier Gates® crimpers.Internally, the GC32-XD® uses a unique cloverleaf design that simply produces a better crimp. Unlike standard annular head configurations, the Gates® exclusive cloverleaf design reinforces the piston so the dies move smoother for more consistent crimps, without any taper in the crimp O.D.
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
• Dimensions: 37"H x 23"W 19-1/2"D
• Weight: 660 lbs.
• Motor: 5 hp
• Pump: 2 stage
• Power source: 208-260V, 45-65 Hz, 1 phase, 20 A
• Maximum operating pressure: 470 tons
• Stand (optional): (Item No. 1206386) 25-1/2"H x 31-3/4"W x 16-1/2"D (height adjustable)
Technical Specifications
| Item#: | 1203836 |
|---|---|
| Manufacturer Model #: | 74807001 |
| Category | Crimper |
| Description | GC32-XD® Crimper |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
