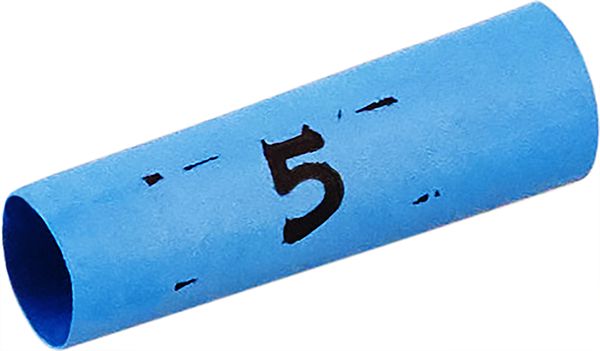

Heat Shrink Wire Marker Tag 16 to 14 AWG #5
(Pack of
10.0)
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing
• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-59
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 22 to 18 AWG #3
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 22 to 18 AWG #1
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 16 to 14 AWG #7
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Product Description
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Technical Specifications
| Item#: | 98533 |
|---|---|
| Style | Heat-Shrink Wire Markers |
| Marker Designation | 5 |
| Color | Blue |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 PSI |
| Elongation | 400 % |
| Operating Temperature Range | -67 - 275 °F |
| Dielectric Strength | 1,300 V/mm |
| Voltage Rating | 600 V |
| Shrink Temperature | 250 °F |
| Wire Gauge | 16-14 AWG |
| Approvals | UL, CSA, and meets military standards |
| Type | Wire Marker |
| UNSPSC #: | 39131500 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
