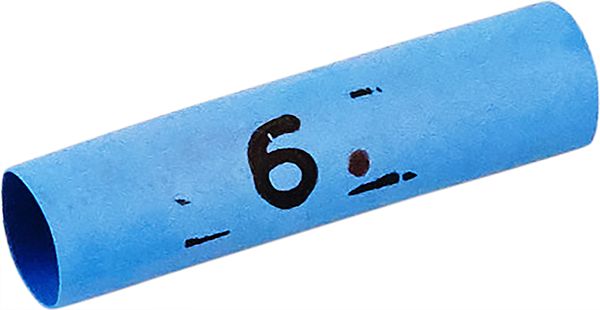

Heat Shrink Wire Marker Tag, 16 to 14 AWG, Blue, 2400 PSI Tensile Strength, 2:1 Shrink Ratio, 400% Elongation, Legend 6
(Pack of
10)
SKU:98534 Item#: 98534
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing
• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Couldn't load pickup availability
Catalog page#: 17-59
Frequently Bought Together
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Wire Marker Tag 8' Length 3mm Thickness #1
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 16 to 14 AWG #4
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 16 to 14 AWG #1
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Product Description
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Technical Specifications
| Item#: | 98534 |
|---|---|
| Style | Heat-Shrink Wire Markers |
| Marker Designation | 6 |
| Color | Blue |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 PSI |
| Elongation | 400 % |
| Operating Temperature Range | -67 - 275 °F |
| Dielectric Strength | 1,300 V/mm |
| Voltage Rating | 600 V |
| Shrink Temperature | 250 °F |
| Wire Gauge | 16-14 AWG |
| Approvals | UL, CSA, and meets military standards |
| Type | Wire Marker |
| UNSPSC #: | 39131500 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
