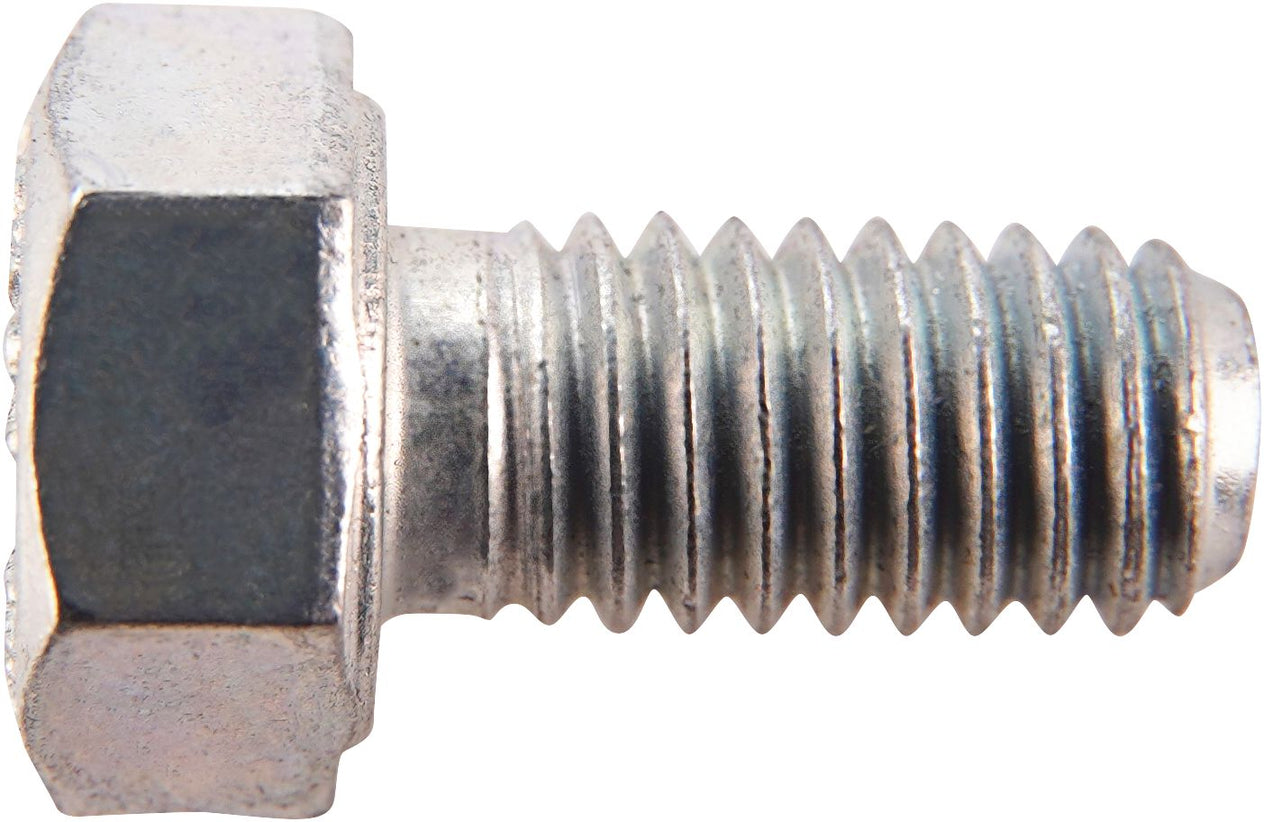

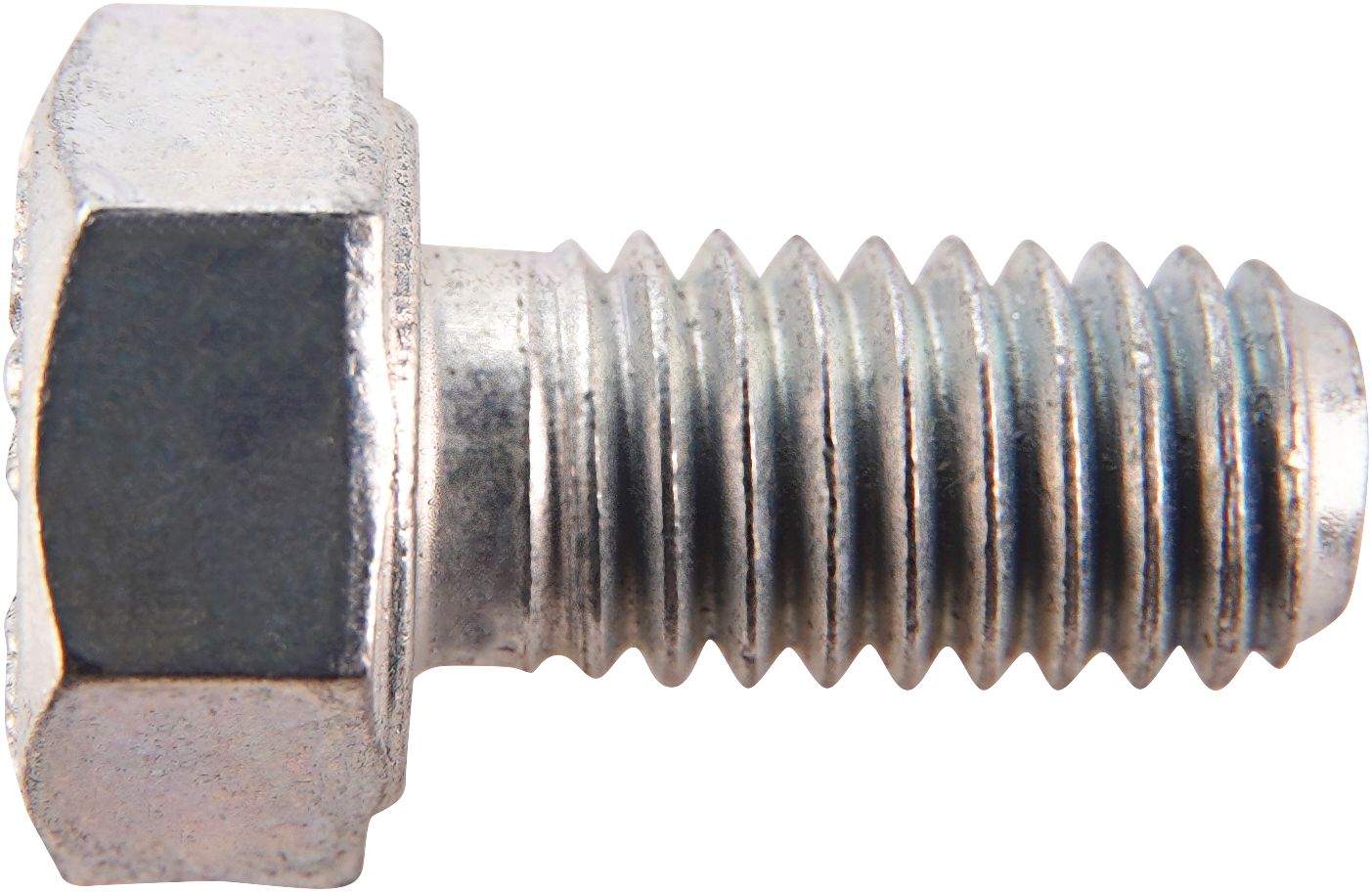

DIN 933 Hex Cap Scrw, Property Class 10.9, Alloy S, Zinc Finish, Coarse Thrd, 7.7mm Hd Height, 17mm Across Flats, M10-1.5 x 30mm
(Pack of
25)
• American-made Property Class 10.9 metric fasteners are 25% stronger than conventional Property Class 8.8 fasteners

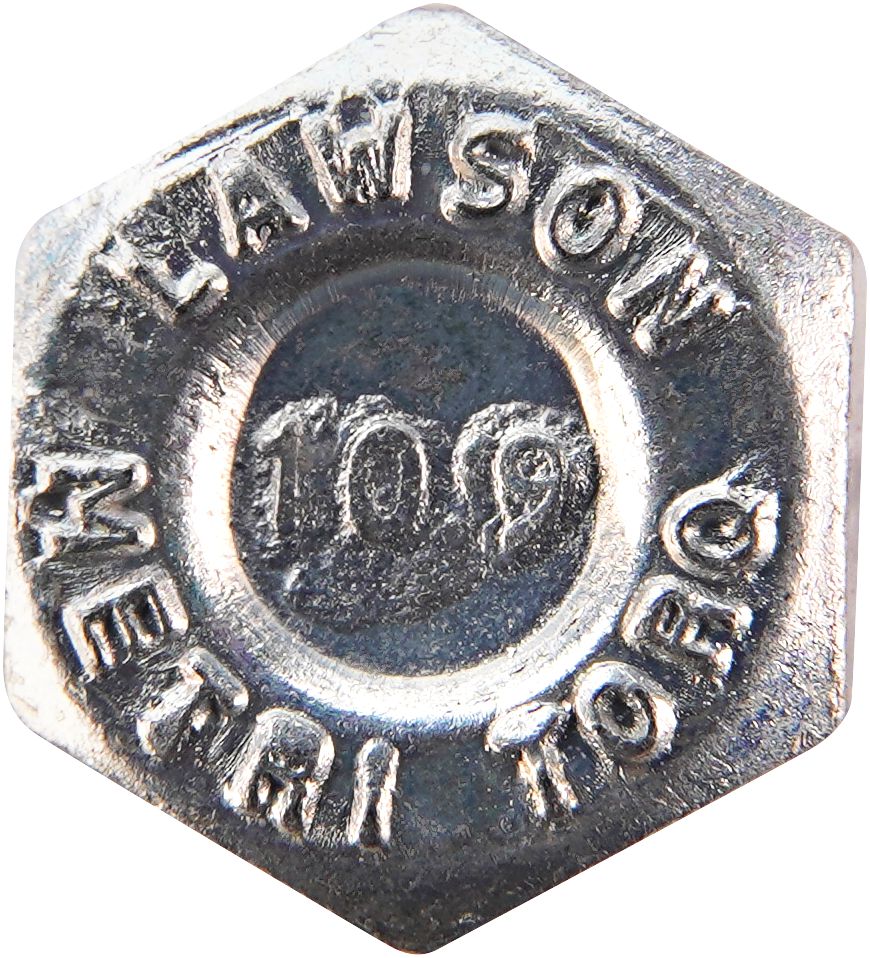

• Specially designed head markings
• Lot control traceability to insure product integrity
• 20% higher cap screw head for easier wrenching ability
• 1,040 MPa (150,000 PSI) nut proof strength designed to support Metri-Torq® cap screw loads
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
• Property Class 10.9 – 1,040 MPa (150,000 PSI tensile strength)
Specially designed for the maintenance and repair market
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 3-39
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 2-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 2-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 1-1/2"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Product Description
• American-made Property Class 10.9 metric fasteners are 25% stronger than conventional Property Class 8.8 fasteners• Specially designed head markings
• Lot control traceability to insure product integrity
• 20% higher cap screw head for easier wrenching ability
• 1,040 MPa (150,000 PSI) nut proof strength designed to support Metri-Torq® cap screw loads
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
• Property Class 10.9 – 1,040 MPa (150,000 PSI tensile strength)
Specially designed for the maintenance and repair market
Technical Specifications
| Item#: | 4293 |
|---|---|
| Style | Premium |
| Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Thread | Coarse |
| Length | 30 mm |
| Type | Hex Cap Screw |
| Across Flats | 17 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Bright Zinc |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 933 |
| Head Style | High Hex |
| Head Height | 7.7 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 1.61 lb |
