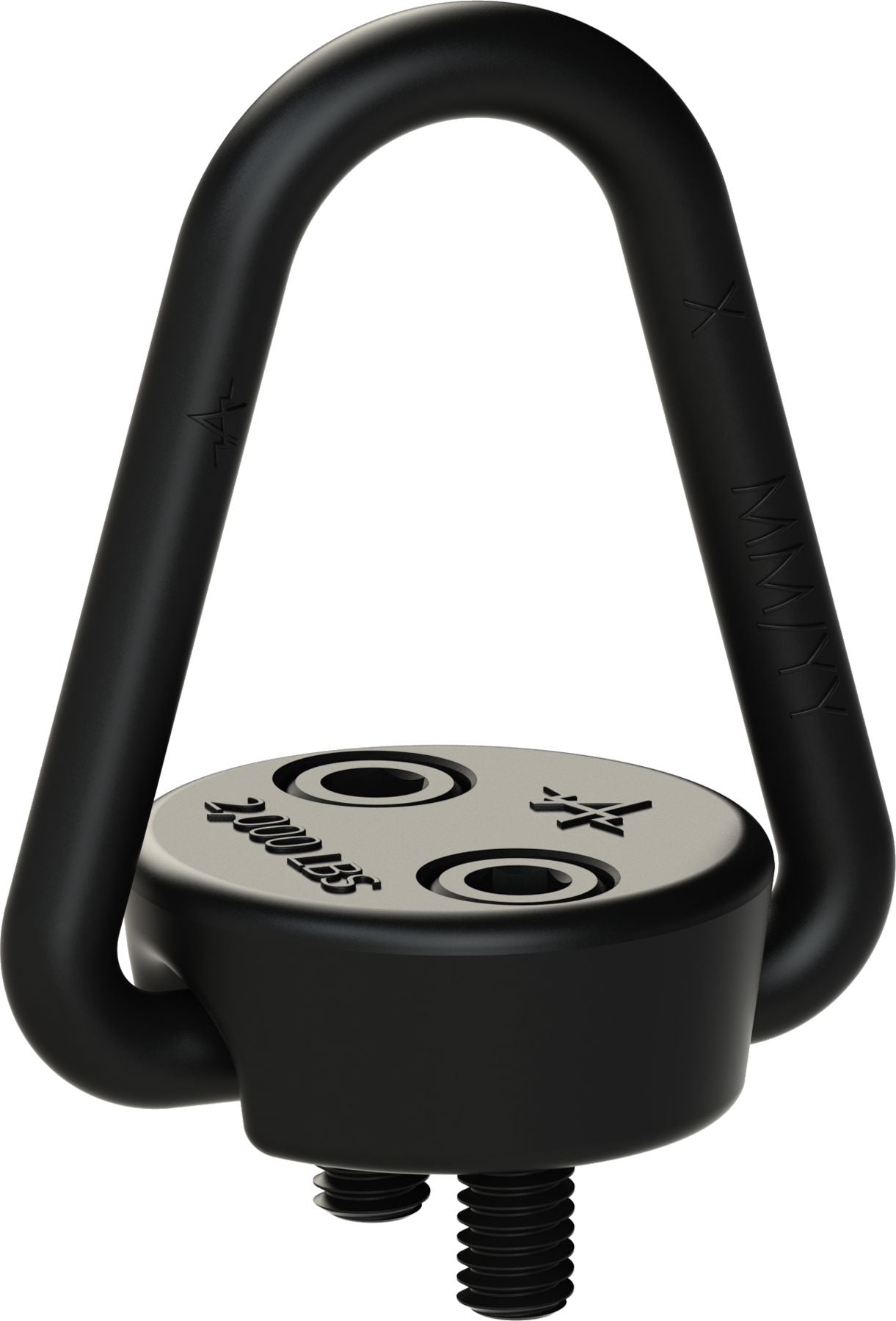

Hoist Ring, Flip-Flop, 5,000 lb Load Limit
(Pack of
1.0)
• Forged chrome moly steel
• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 15-17
Frequently Bought Together
Eye Bolt with Nut, Stainless Steel, 1/4"-20, 500 lb WLL
Couldn't load pickup availability
Eyebolt, Machinery, Self-Colored, 1-1/2" x 3-1/2"
Couldn't load pickup availability
Eye Bolt with Nut 5/8" x 6" Long
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 1,050 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Flip-Flop, 20,000 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 11,000 kg Load Limit
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Product Description
• Forged chrome moly steel• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included
Technical Specifications
| Item#: | 1423414 |
|---|---|
| Type | Flip-Flop |
| Thread Size | 1/2-13 |
| Screw Length | 2 " |
| Number of Screws | 2 |
| Material | Chrome Molly Steel |
| Finish | Black Oxide |
| Working Load Limit | 5,000 lb |
| Swivel | 0 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 20-25 ft·lbf |

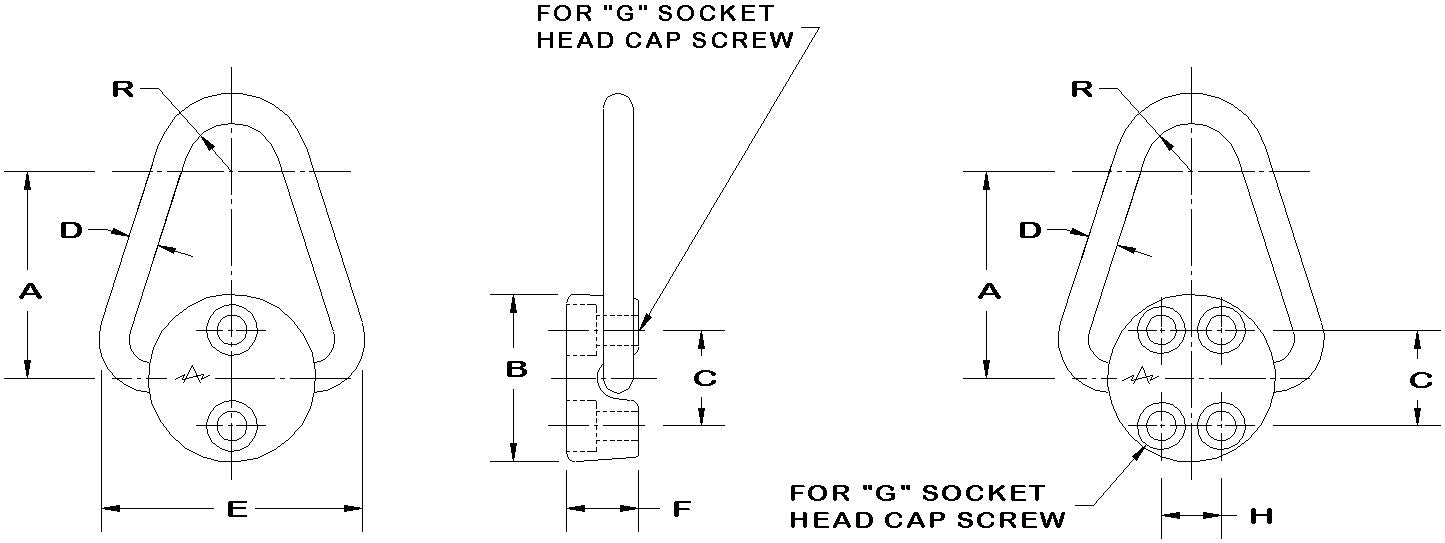

| Dimension A | 3 " |
| Dimension B | 2-5/8 " |
| Dimension C | 1-1/2 " |
| Dimension D | 1/2 " |
| Dimension E | 3-7/8 " |
| Dimension F | 1-1/8 " |
| Dimension G | 1/2 " |
| Dimension H | 0 " |
| Dimension R | 3/4 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
