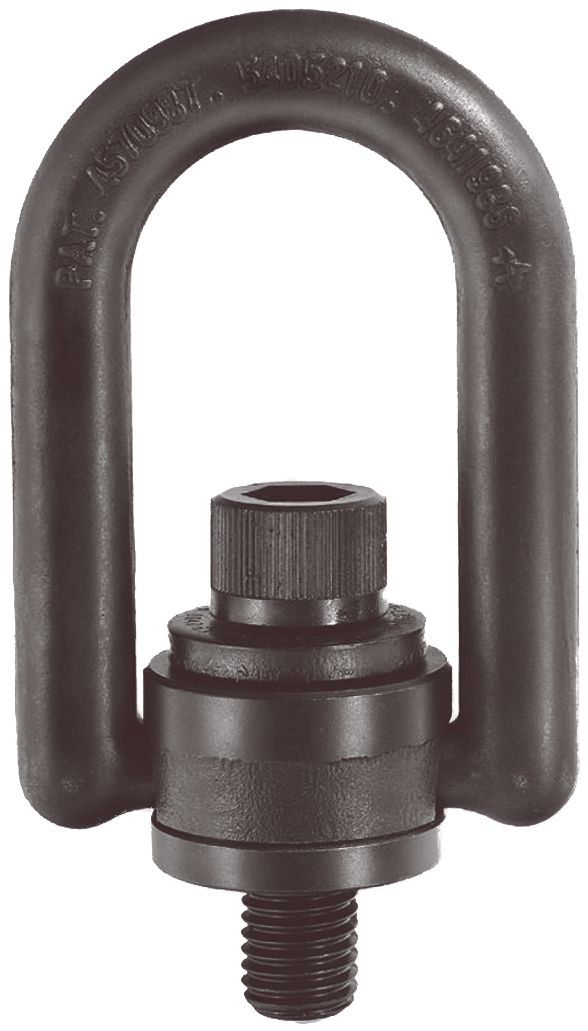

Hoist Ring, Heavy Duty®, 2,500 lb Load Limit, 1/2-13 Thread Size, .75" Thread Length
(Pack of
1)
SKU:1423169 Item#: 1423169
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 15-16
Frequently Bought Together
Screw Pin Anchor Shackle, 7/16", 4,000 lb WLL
Couldn't load pickup availability
Eye Bolts, Machinery, 5/16 x 1-1/8"
Couldn't load pickup availability
Hook Ceiling Trade Size 10
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 15,000 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 10,000 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 10,000 lb Load Limit
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 3,000 lb WLL
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 19" Long
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423169 |
|---|---|
| Manufacturer Model #: | 33512 |
| Type | Heavy Duty |
| Thread Size | 1/2-13 |
| Thread Length | 0.75 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 2,500 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 28 ft·lbf |

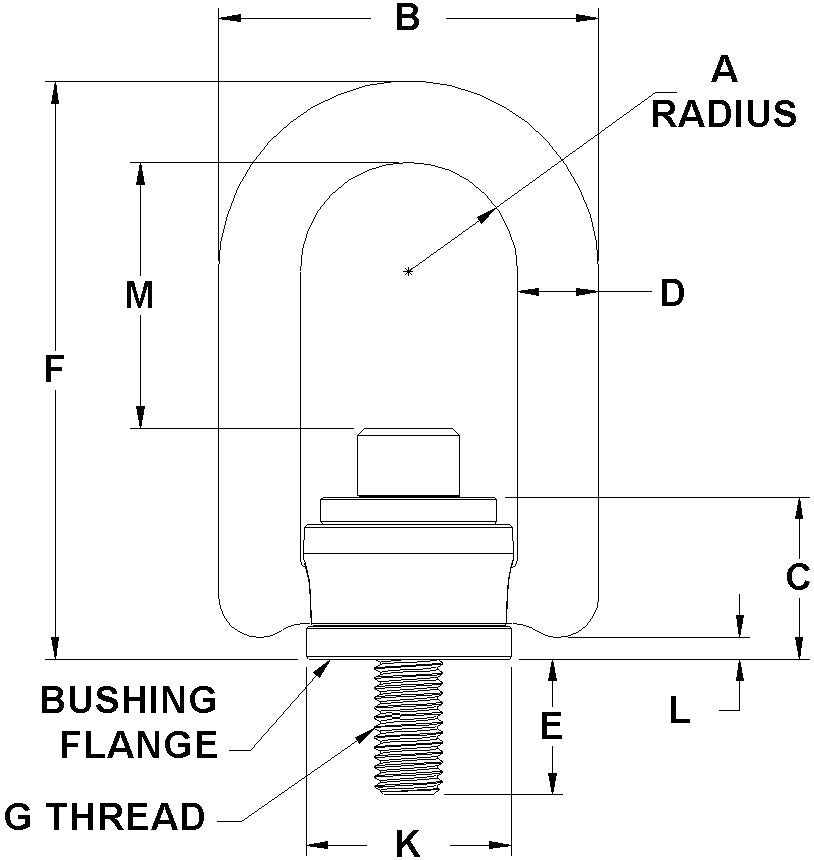

| Dimension A | 1.00 " |
| Dimension B | 3.50 " |
| Dimension C | 1.50 " |
| Dimension D | .75 " |
| Dimension E | .75 " |
| Dimension F | 5.31 " |
| Dimension G | 1/2-13 " |
| Dimension K | 1.89 " |
| Dimension L | 0.17 " |
| Dimension M | 2.56 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
