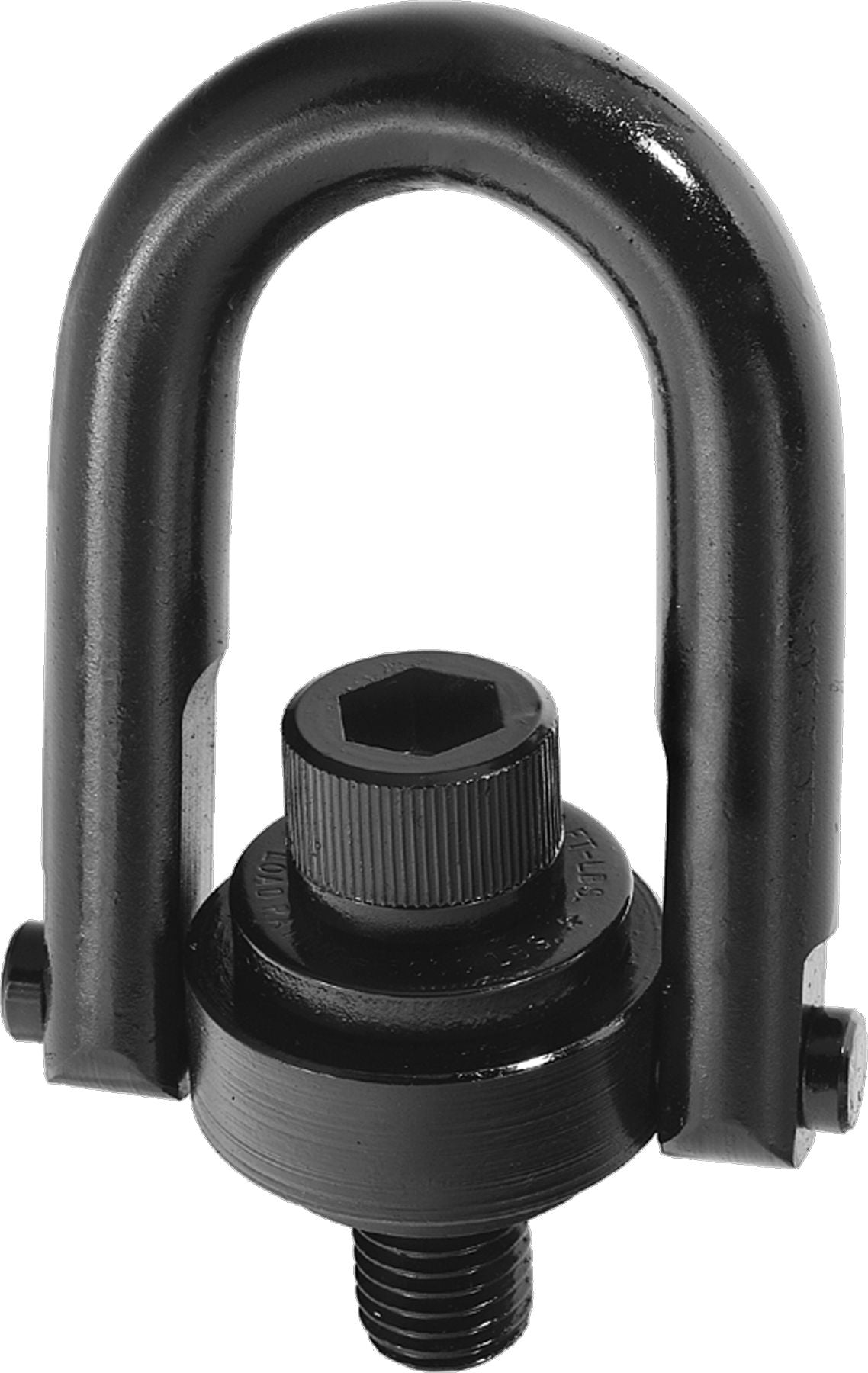

Hoist Ring, Safety Engineered, 30,000 lb Load Limit, 2-8 Thread Size, 2.96" Thread Length
(Pack of
1)
SKU:1423277 Item#: 1423277
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Supplied with stud and nut
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Screw Pin Anchor Shackle, 3/4", 13,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/2", 6,000 lb WLL
Couldn't load pickup availability
Spring Link, 5/16", 350 lb WLL, Zinc
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 5,000 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 1,050 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 2,250 lb Load Limit
Couldn't load pickup availability
Quick Link 5/16" Chain Size 1540 Lb Safe Load
Couldn't load pickup availability
Wire Rope Sleeve, 3/32", Copper, Zinc Plated
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,500 lb WLL
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Supplied with stud and nut
Technical Specifications
| Item#: | 1423277 |
|---|---|
| Manufacturer Model #: | 23203 |
| Type | Safety Engineered |
| Thread Size | 2-8 |
| Thread Length | 2.96 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 30,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 1100 ft·lbf |

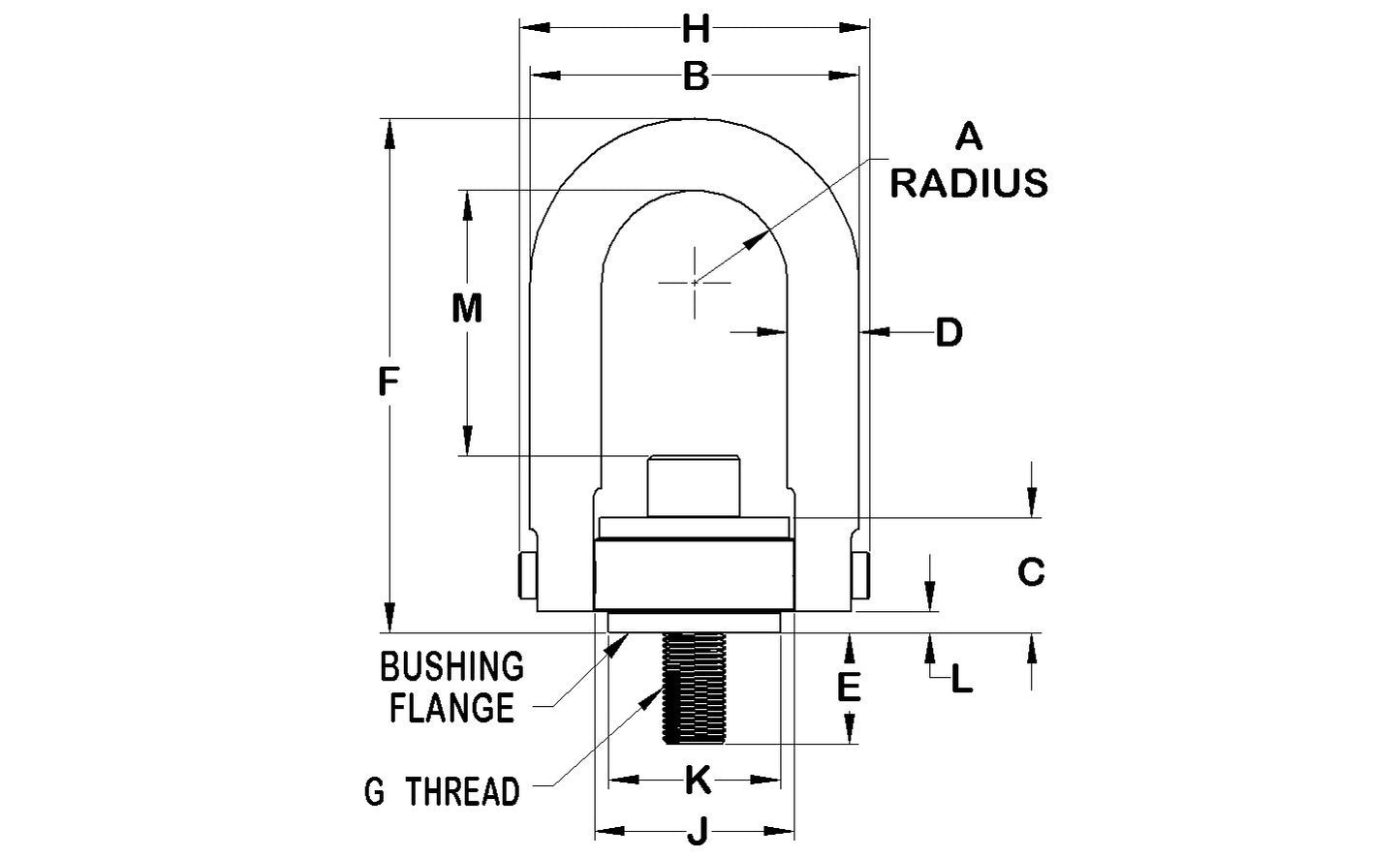

| Dimension A | 2.25 " |
| Dimension B | 8.00 " |
| Dimension C | 2.81 " |
| Dimension D | 1-3/4 " |
| Dimension E | 2.96 " |
| Dimension F | 12.47 " |
| Dimension G | 2-8 " |
| Dimension H | 8.55 " |
| Dimension J | 4.87 " |
| Dimension K | 4.20 " |
| Dimension L | .47 " |
| Dimension M | 6.41 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
