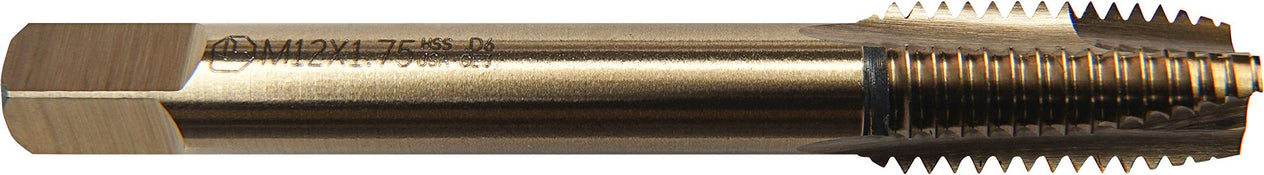

HSS Spiral Point Hand Tap M12 x 1.75
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 11-43
Frequently Bought Together
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
HSS Spiral Point Hand Tap M14 x 2
Couldn't load pickup availability
HSS Spiral Point Hand Tap 9/16-12
Couldn't load pickup availability
Pilotdrive Cryotap 7/8"-9 Starter Hand Tap
Couldn't load pickup availability
Cryotap 1/4"-20 Taper Hand Tap
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap M6 x 1
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/2"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63501 |
|---|---|
| Type | Metric |
| Diameter | M12 |
| Pitch | 1.75 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 3-3/8 " |
| Recommended Drill Size | Yes |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
