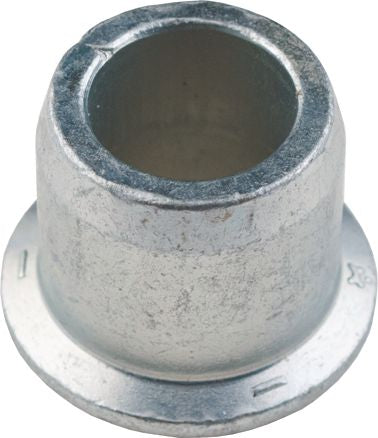

HuckBolt® C50L® Rivet Collar, Fixed Grip, Flanged, Carbon Steel, Zinc Plated, 1/2" Diameter, 0.722 to 0.76" Overall Height
(Pack of
10)
SKU:1504986 Item#: 1504986
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Zinc-plated carbon steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-24
Frequently Bought Together
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/8-11
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 1/4"
Couldn't load pickup availability
Lockbolt Collar Standard Flange Carbon Steel 3/16"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Collar Flanged 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Backup Washer Round Aluminum 3/16" Hole
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Swivel Head Ratchet 1/4 Drive
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Swivel Head Ratchet 1/4 Drive
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Zinc-plated carbon steel
Technical Specifications
| Item#: | 1504986 |
|---|---|
| Manufacturer Model #: | 3LC-2R16G |
| Series | Fixed Grip |
| Diameter | 1/2 " |
| Style | Flanged |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Body Diameter | 0.793 - 0.807 " |
| Flange Diameter | 0.980 - 1.035 " |
| Flange Thickness | 0.120 - 0.130 " |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.66 lb |
