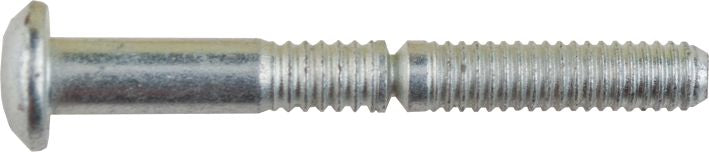

HuckBolt® C6L® Rivet Lockbolt, Round/Button Head, Carbon Steel, Zinc Plated, 1/4" Diameter, 0.438 to 0.563" Grip Range
(Pack of
10)
SKU:1504938 Item#: 1504938
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Stronger, easier to install and more durable than welding
• Exclusive locking 6-groove design and high-uniform clamp ensure secure, permanent fit
• Wide bearing collar and head spread load to ensure structural integrity
• Corrosion-resistant coating can be painted
• Excellent gap pull-out and high retained clamp
• High fatigue annular lock groove form extends the life of your structure
• Ideal for use in general manufacturing, HVAC, trailer and container assembly and repair, railroad and transit cars
• Round/button head design
• Zinc-plated carbon steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-25
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 3/8"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Steel 3/16"
Couldn't load pickup availability
Multi-Grip Lockbolt Button Head Aluminum 1/4"
Couldn't load pickup availability
Tri-Fold Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Stronger, easier to install and more durable than welding
• Exclusive locking 6-groove design and high-uniform clamp ensure secure, permanent fit
• Wide bearing collar and head spread load to ensure structural integrity
• Corrosion-resistant coating can be painted
• Excellent gap pull-out and high retained clamp
• High fatigue annular lock groove form extends the life of your structure
• Ideal for use in general manufacturing, HVAC, trailer and container assembly and repair, railroad and transit cars
• Round/button head design
• Zinc-plated carbon steel
Technical Specifications
| Item#: | 1504938 |
|---|---|
| Manufacturer Model #: | C6LB-R8-8G |
| Series | Fixed Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.281 (0.312 - Flanged Collar) " |
| Grip Range | 0.438 - 0.563 " |
| Head Style | Button (Brazier) Head |
| Length | 1.895 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.475 - 0.525 " |
| Head Height | 0.136 - 0.152 " |
| Clamp Load | 1,805 lb |
| Tensile Strength | 2,550 lb |
| Shear Strength | 3,050 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.29 lb |
