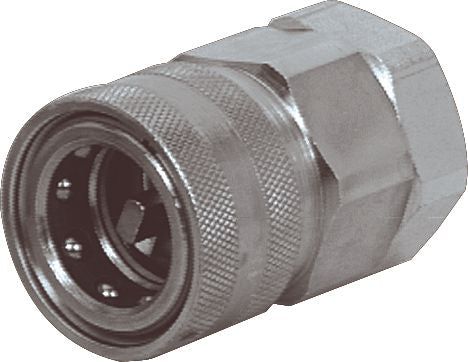

Hydraulic Quick Connect Coupler 1/2" x 1/2-14
(Pack of
1.0)
Double shut-off design for high-pressure applications, H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-85
Frequently Bought Together
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Rubber 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 1" x 1-11-1/2
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
Double shut-off design for high-pressure applications, H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.• Also fully interchangeable with MIL-C-51234 couplers and nipples• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Technical Specifications
| Item#: | 53617 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Snap-Tite H/IH |
| Standards | MIL-C-51234 |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 9,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 9 Balls |
| Flow | 13 gal/min |
| Length | 2.13 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1-3/16 " |
| Maximum Diameter | 1.36 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.46 lb |
