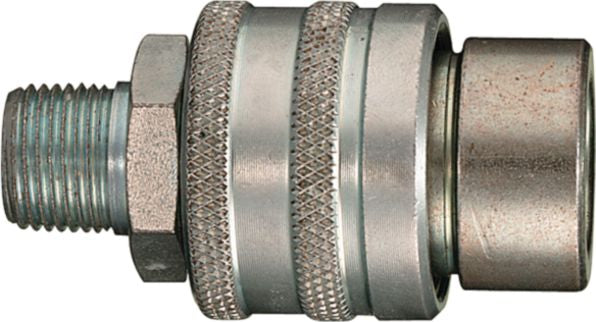

Hydraulic Quick Connect Coupler 1/4" x 1/4-18
(Pack of
1)
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.
• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-84
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Hose Clamp 301 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
4EF4-B
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Rubber 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 1-11-1/2
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Product Description
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Technical Specifications
| Item#: | 28887 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Screw Together |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Male NPTF |
| Burst Pressure | 35,714 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 3.8 gal/min |
| Length | 2.36 " |
| Temperature Range | -4 to 212 F |
| Working Pressure | 10,000 PSI |
| Hex Size | 13/16 " |
| Maximum Diameter | 1.14 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.28 lb |
