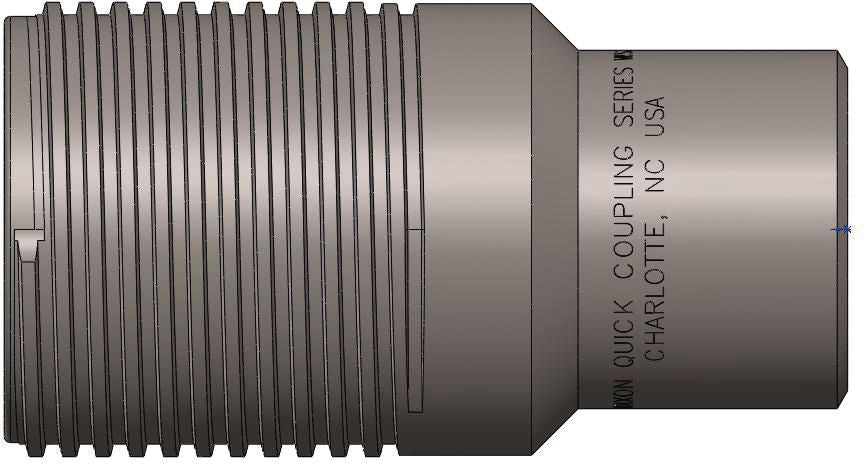

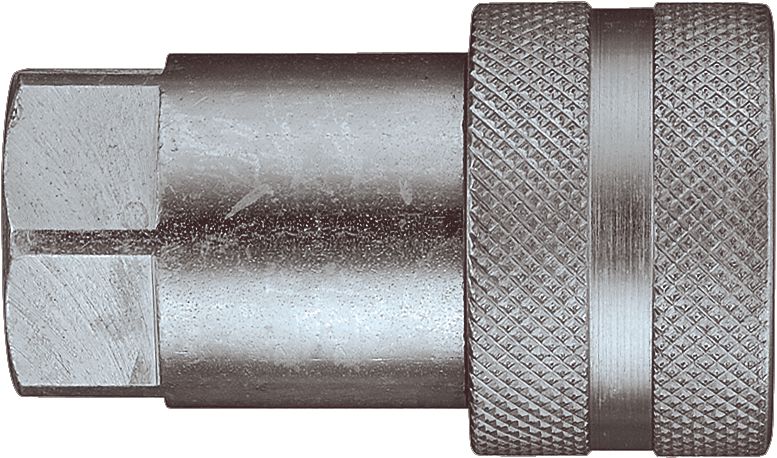

Hydraulic Quick Connect Coupler, Carbon Steel, ISO 5675, 3/4" x 3/4-14, Female NPT, 3.56" Length, 3625PSI
(Pack of
1)
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-82
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1/4"
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1" x 1-11-1/2
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Dust Cap for Nipple PVC/Rubber 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 28622 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 5675 |
| Body Size | 3/4 " |
| Thread Size | 3/4-14 |
| Thread Style | Female NPT |
| Burst Pressure | 14,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Locking Mechanism | 12 Balls |
| Flow | 28 gal/min |
| Length | 3.56 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,625 PSI |
| Hex Size | 1-1/2 " |
| Maximum Diameter | 1.89 " |
| Coupled Length | 4.66 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 1.61 lb |
