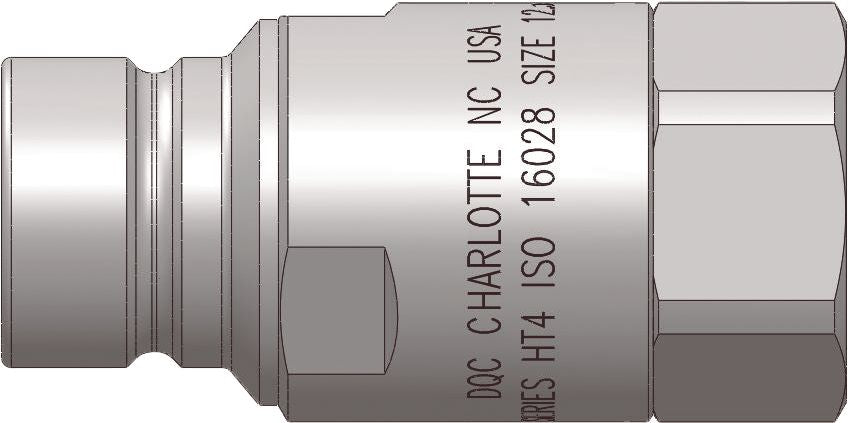

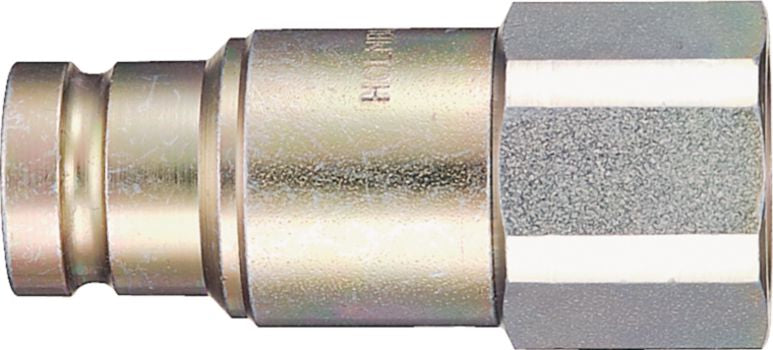

Hydraulic Quick Connect Nipple, Steel, ISO 16028, 3/8" x 1/2-14, Female NPTF, 2.74" Length, 4350PSI

                    (Pack of
                    1)

Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back  the coupling springs apart.
 Zinc-plated steel body
 PTFE and nitrile rubber seals
 Conforms to ISO 16028 Standards
 Operating temperature range: 4°F to +212°F (20°C to +100°C)
 Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back  the coupling springs apart.
Couldn't load pickup availability
  California Proposition 65:  Not Applicable
  www.P65Warnings.ca.gov
Catalog page#: 8-83
Frequently Bought Together


                      Weatherhead H280 Hydraulic Hose Rubber 1.41" x 50'
Couldn't load pickup availability


                      Weatherhead H280 Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability


                      Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability


                      Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability


                      Weatherhead H280 Hydraulic Hose Rubber 1.41" x 50'
Couldn't load pickup availability


                      Weatherhead H280 Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability


                      Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability


                      Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability


                      MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability


                      Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability


                      DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability


                      Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability


                      Hydraulic Quick Connect Coupler 1/2" x 3/4-14
Couldn't load pickup availability


                      Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability


                      Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability


                      Nylon Cable Tie 15.5" Black
Couldn't load pickup availability


                      Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability


                      Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Product Description
Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back  the coupling springs apart. Zinc-plated steel body
 PTFE and nitrile rubber seals
 Conforms to ISO 16028 Standards
 Operating temperature range: 4°F to +212°F (20°C to +100°C)
 Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back  the coupling springs apart.
Technical Specifications
| Item#: | 29976 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 16028, NFPA T3.20.15 (HTMA) |
| Standards | ISO 16028, NFPA T3.20.15 (HTMA) |
| Body Size | 10mm (3/8") |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 17,400 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Flow | 18 gal/min |
| Length | 2.46 " |
| Temperature Range | -40 to 212 F |
| Working Pressure | 4,350 PSI |
| Hex Size | 1.06 " |
| Maximum Diameter | 1.14 " |
| Coupled Length | 4.57 " |
| Tip Diameter | 0.7765 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
