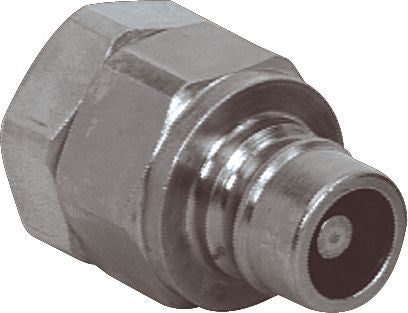

Hydraulic Quick Connect Nipple, Steel, Snap-Tite H/IH, 3/8" x 3/8-18, Female NPTF, 1.87" Length, 4500PSI
(Pack of
1)
SKU:53611 Item#: 53611
Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-85
Frequently Bought Together
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 3/4-14
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Technical Specifications
| Item#: | 53611 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Snap-Tite H/IH |
| Standards | MIL-C-51234 |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 10,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Flow | 9.5 gal/min |
| Length | 1.87 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,500 PSI |
| Hex Size | 1 " |
| Maximum Diameter | 1.10 " |
| Coupled Length | 3.07 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
