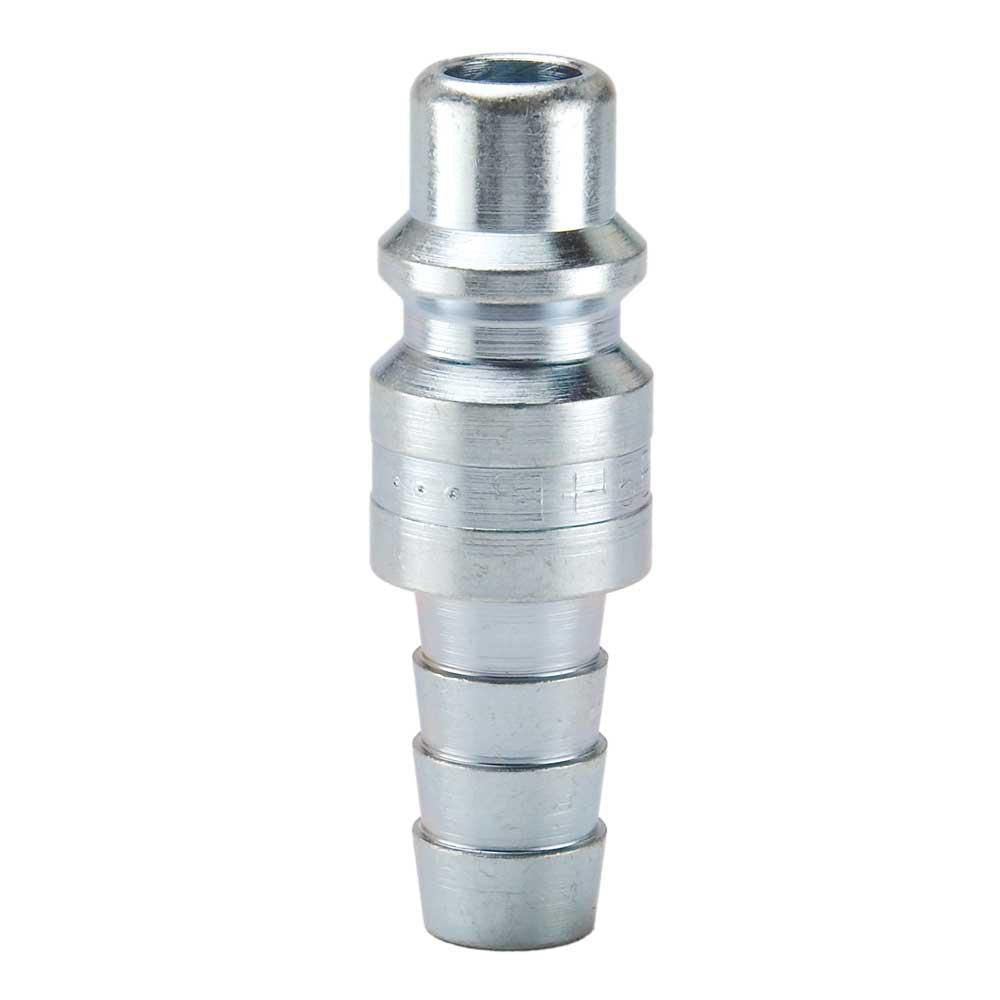

Industrial Interchange Nipples, Steel, Standard Industrial, Hose Barb, 1/2" Body Size, 1/2" Hose ID
(Pack of
1)
SKU:1268179 Item#: 1268179
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.
• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1268179 |
|---|---|
| Manufacturer Model #: | H5F |
| Type | Nipple |
| Style | Standard Industrial |
| Body Size | 1/2 " |
| Working Pressure | 300 PSI |
| Material | Steel |
| Hose I.D. | 1/2 " |
| Length | 2.36 " |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
