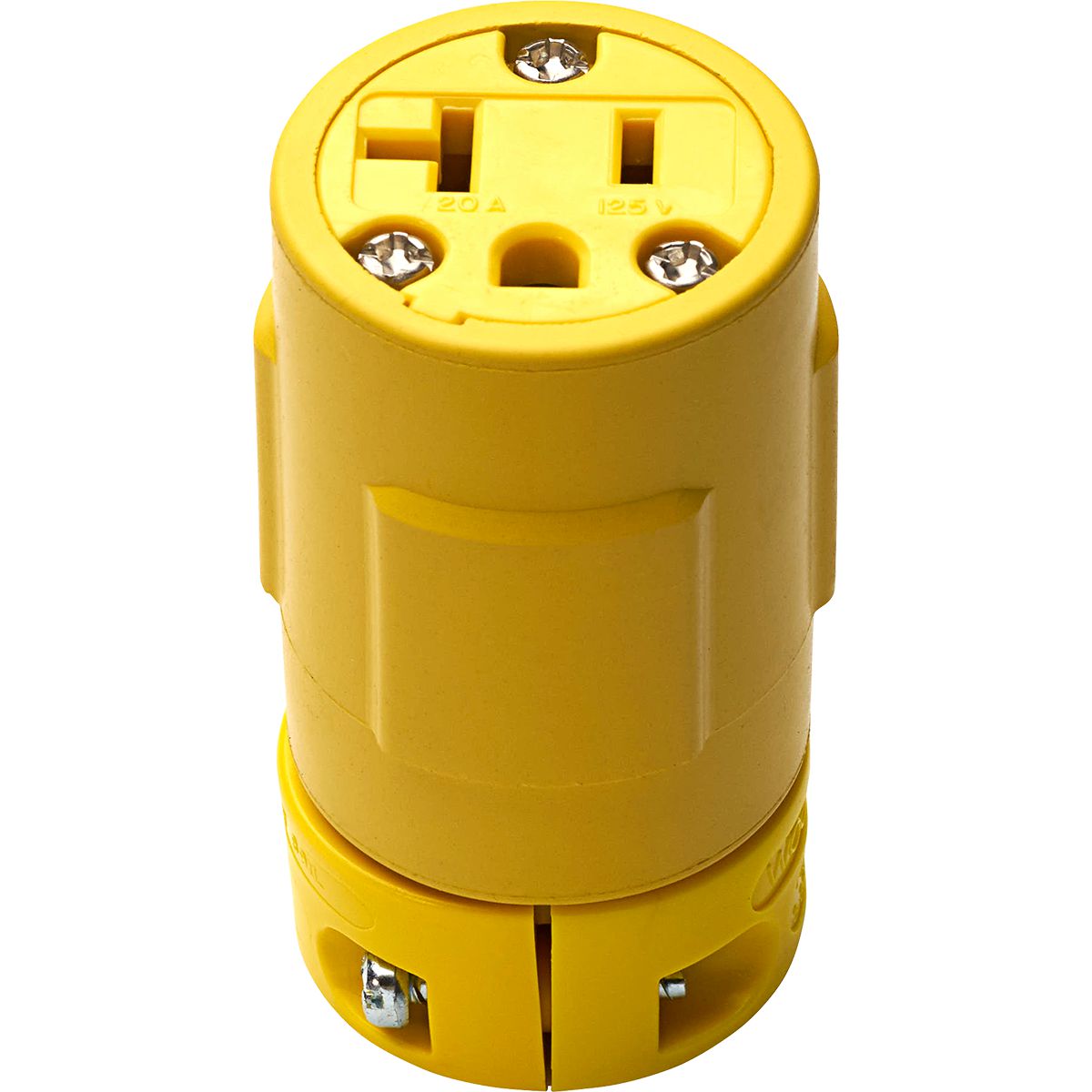

Industrial Duty Connector 20A 125V
(Pack of
1.0)
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.
• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-90
Frequently Bought Together
DT Series Socket Wedgelock 13A 2 Contacts
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Hospital Grade Straight Plug 20A 125V
Couldn't load pickup availability
Industrial Duty Connector 10/15A 250/125V
Couldn't load pickup availability
Toggle Switch AC Single Pole 15A 120V Brown
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Industrial Duty SAF-T Connect Connector 15A 125V
Couldn't load pickup availability
Push-Pull Switch SPST 20A 12V Off-On
Couldn't load pickup availability
Rocker Switch Bracket for Center Unit
Couldn't load pickup availability
Product Description
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Technical Specifications
| Item#: | 87222 |
|---|---|
| Style | Industrial-Duty Plugs and Connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | 5-20R |
| Cord Diameter | 0.335 - 0.640 " |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
