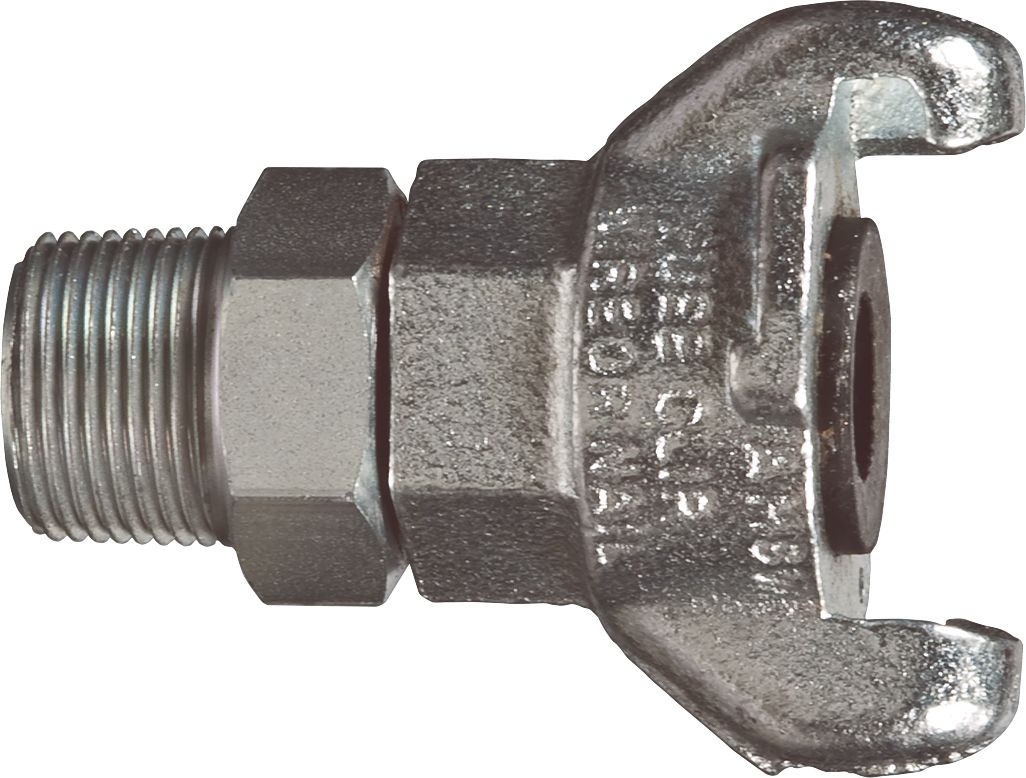

Iron Quick Acting Claw Fitting Swivel 3/4-14
(Pack of
1)
SKU:1592964 Item#: 1592964
Chicago-style, quick-acting, economical, universal coupling system. Used for connecting jackhammer and other high-volume hoses. Barb-style coupling permits easy field assembly and repair. Use of a safety clip or wire-type retainer is required for safety (clip provided).
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
• Not permitted for use with steam service
• Operating pressure: 150 PSI
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-165
Frequently Bought Together
Hose End Brass 3/8" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/16 x 5/16"
Couldn't load pickup availability
Hose End Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Chicago-style, quick-acting, economical, universal coupling system. Used for connecting jackhammer and other high-volume hoses. Barb-style coupling permits easy field assembly and repair. Use of a safety clip or wire-type retainer is required for safety (clip provided).• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
• Not permitted for use with steam service
• Operating pressure: 150 PSI
Technical Specifications
| Item#: | 1592964 |
|---|---|
| Manufacturer Model #: | AM7SWIV |
| Style | 2 Claw Style |
| Type | Swivel |
| Material | Iron |
| Connection Type A x B | Male NPT x Claw |
| Fitting Dimension A | 3/4-14 " |
| Maximum Pressure | 150 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.795 lb |
