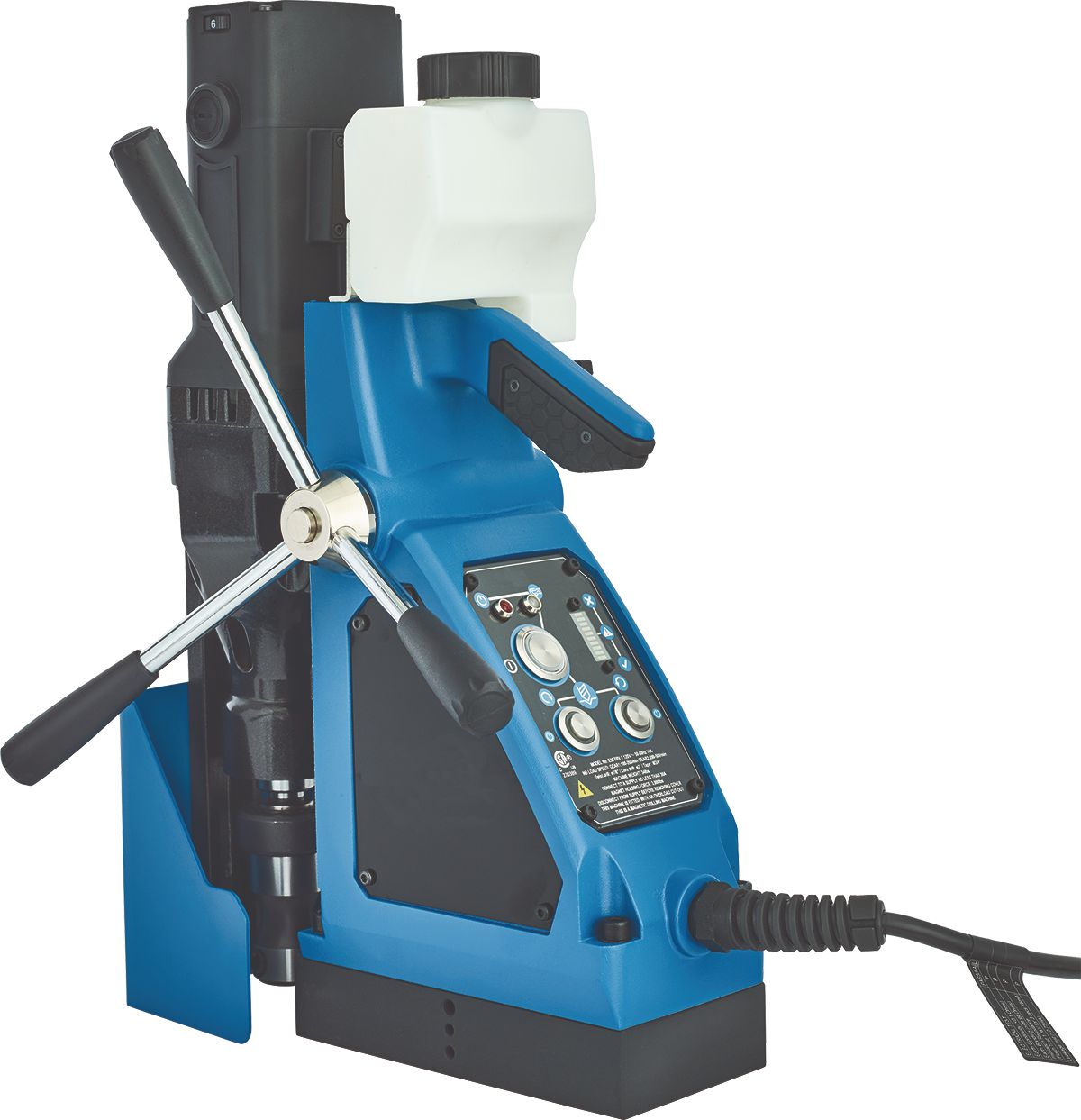

Large Portable Magnetic Drill, 2HP 120V/10A 1500W Single Phase Motor, 2" Depth of Cut, 2" Diameter
(Pack of 1)

Lawson Products

• Capacity: 2" x 2"
• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Quantity

Catalog page#: 11-30

Frequently Bought Together

CryoBore 1-1/8" Dia. Annular Cutter, 2-3/8" Cutting Depth

Item#: DY81873800

CryoBore 9/16" Dia. Annular Cutter, 1-3/16" Cutting Depth

Item#: DY81863000

CryoBore 1-1/8" Dia. Annular Cutter, 1-3/16" Cutting Depth

Item#: DY81863800

Jobber Length Drill Bit HSS 11/64"

Jobber Length Drill Bit HSS 7/64"

Jobber Length Drill Bit HSS 5/32"

Low Profile Portable Magnetic Drill 2"

Portable Magnetic Drill 1-1/2"

USS Flat Washer Thru-Hardened Steel 5/16"

Butt Connector 22 to 18 AWG Red

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Jobber Length Drill Bit HSS 3/8"

Jobber Length Drill Bit HSS 7/32"

0.5 HP Reciprocating Air Saw

Product Description

• Capacity: 2" x 2"
• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Technical Specifications

Item#:	1574608
Height	22-1/4" maximum; 17-9/16" minimum
Width	7-43/64 "
Length	12-13/32 "
Magnetic Dead Lift	3,370
Motor	2 hp 120V 10A 1500W (single phase)
Arbor Bore	3/4 "
Cutter Diameter	2 "
Depth of Cut	2 "
Drill Point Breakaway	3035
Magnetic Base	7-7/8" X "3-7/8" X"1.5"
Centerline Pilot to Motor Face	2-1/4 "
Centerline Pilot to Magnet Face	2-3/64 "
UNSPSC #:	23241801
TAA Compliant:	Yes

Suggested Products

Annular Cutter Center Pin 1/2 to 2-3/8"

Annular Cutter Center Pin 7/16"

CryoBore 11/16" Dia. Annular Cutter, 1-3/16" Cutting Depth

Item#: DY81863200

HSS Annular Cutter 1-1/2"

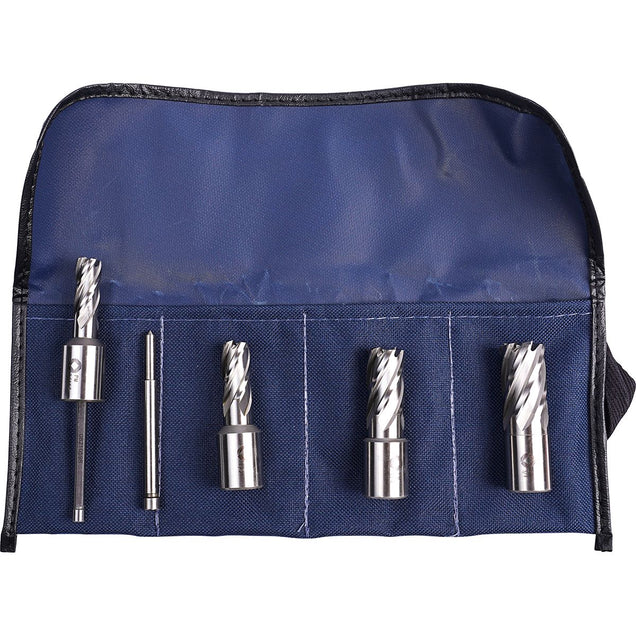

4PC Annular Cutter Set, 7/16", 1/2", 5/8", 3/4" With Pins In Pouch
