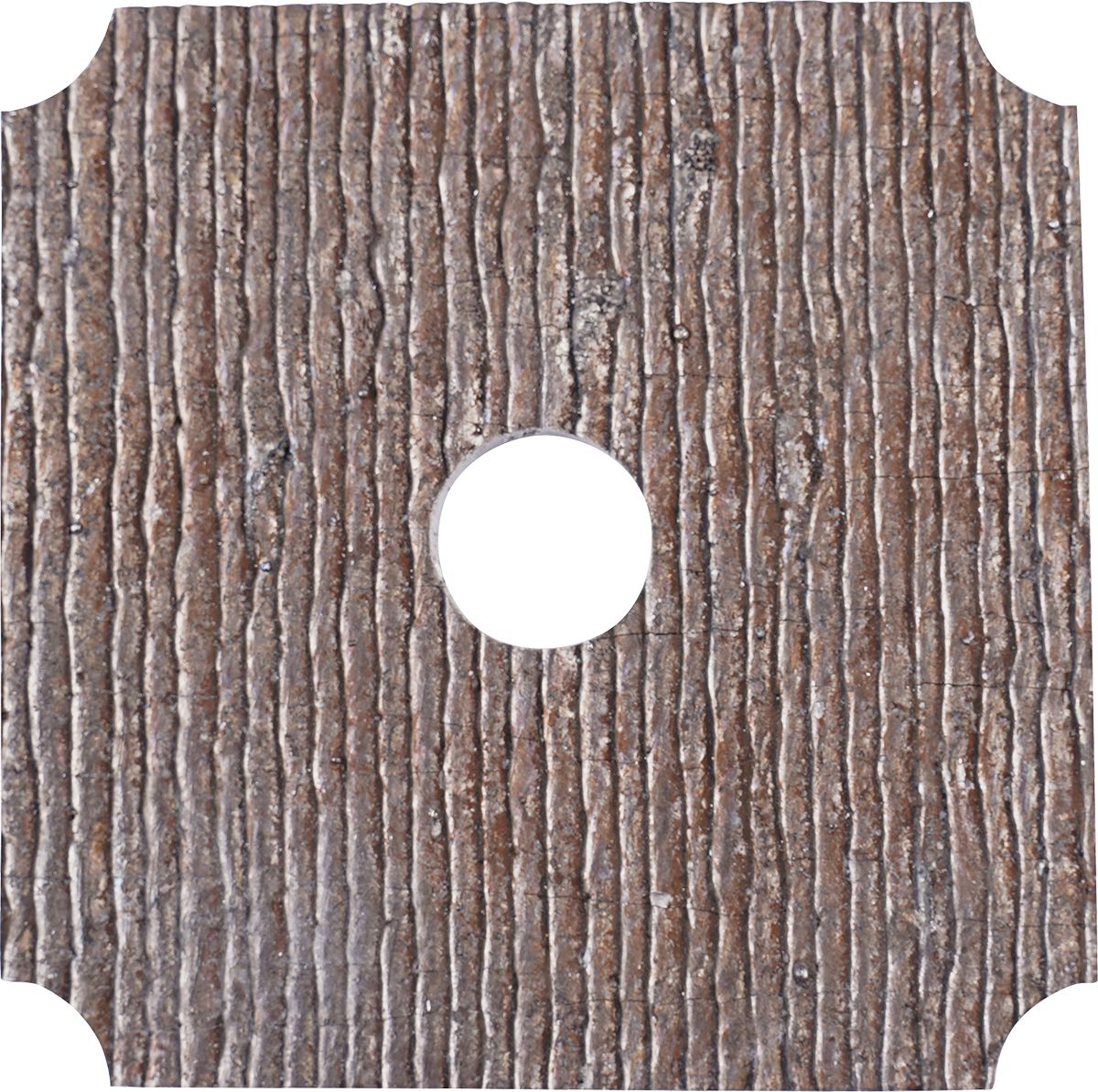

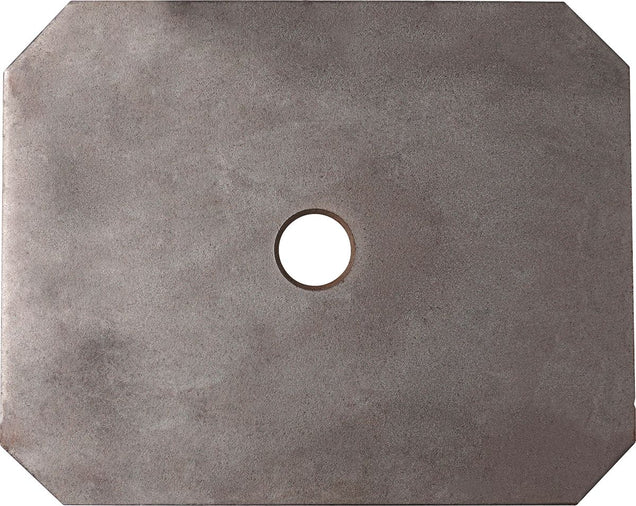

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
1)
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: LE-129
Frequently Bought Together
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
3/16 on 3/16 Dimension I Single Pass Overlay
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Flint Striker
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910424 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 24 " |
| Size | 4" x 24 x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 4.64 lb |
