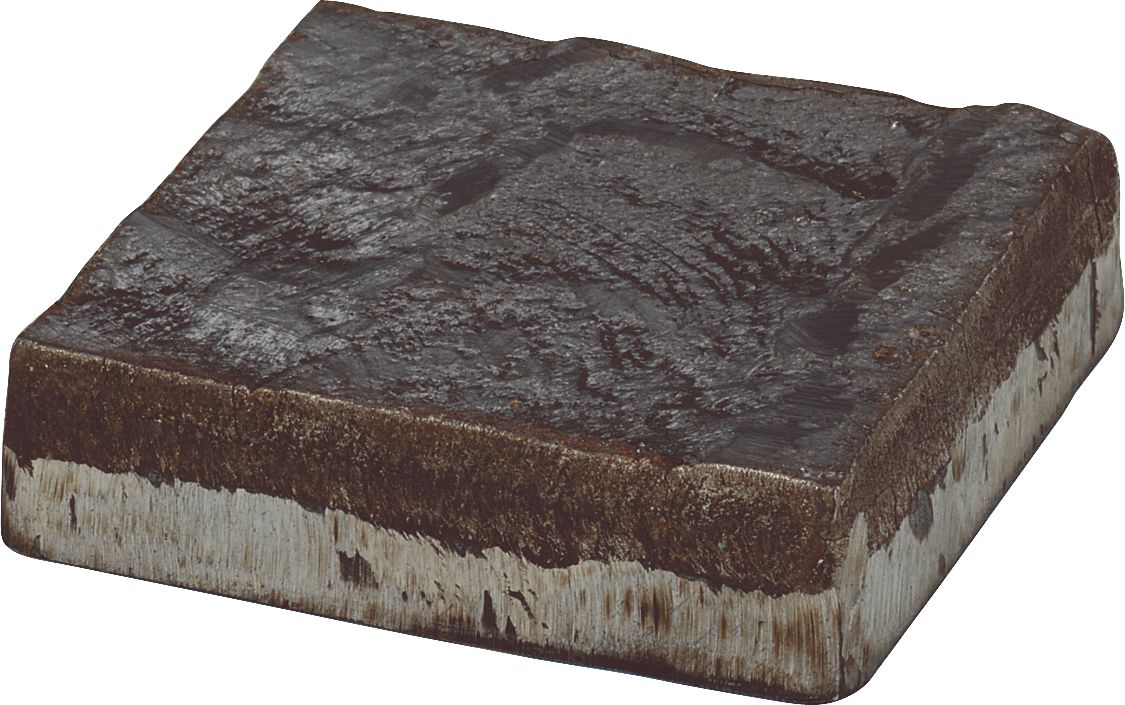

3/8 on 3/8 Dimension I Double Pass Overlay, 39% Carbide, Rc 58-62 Bulk Hardness, 1031lbs Plate Weight, 0.38" Overlay Thickness
(Pack of
1)
SKU:VP2625B Item#: VP2625B
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.
• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides
• Pipe conveyor lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-23
Frequently Bought Together
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
Couldn't load pickup availability
Light Weight Composite Wear Plates 4X4X13/64
Couldn't load pickup availability
Light Weight Composite Wear Plates 36X4X13/64
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides
• Pipe conveyor lines
Technical Specifications
| Item#: | VP2625B |
|---|---|
| Type | Double Pass Overlay |
| Total Thickness | 3/4 " |
| Plate Width | 48 " |
| Plate Length | 96 " |
| Plate Weight | 1,031 lb |
| Size | 3/8 on 3/8 |
| Bulk Hardness | Rc 58-62 |
| Flatness Tolerance | +/- 1/8” over 5’- 0” |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
