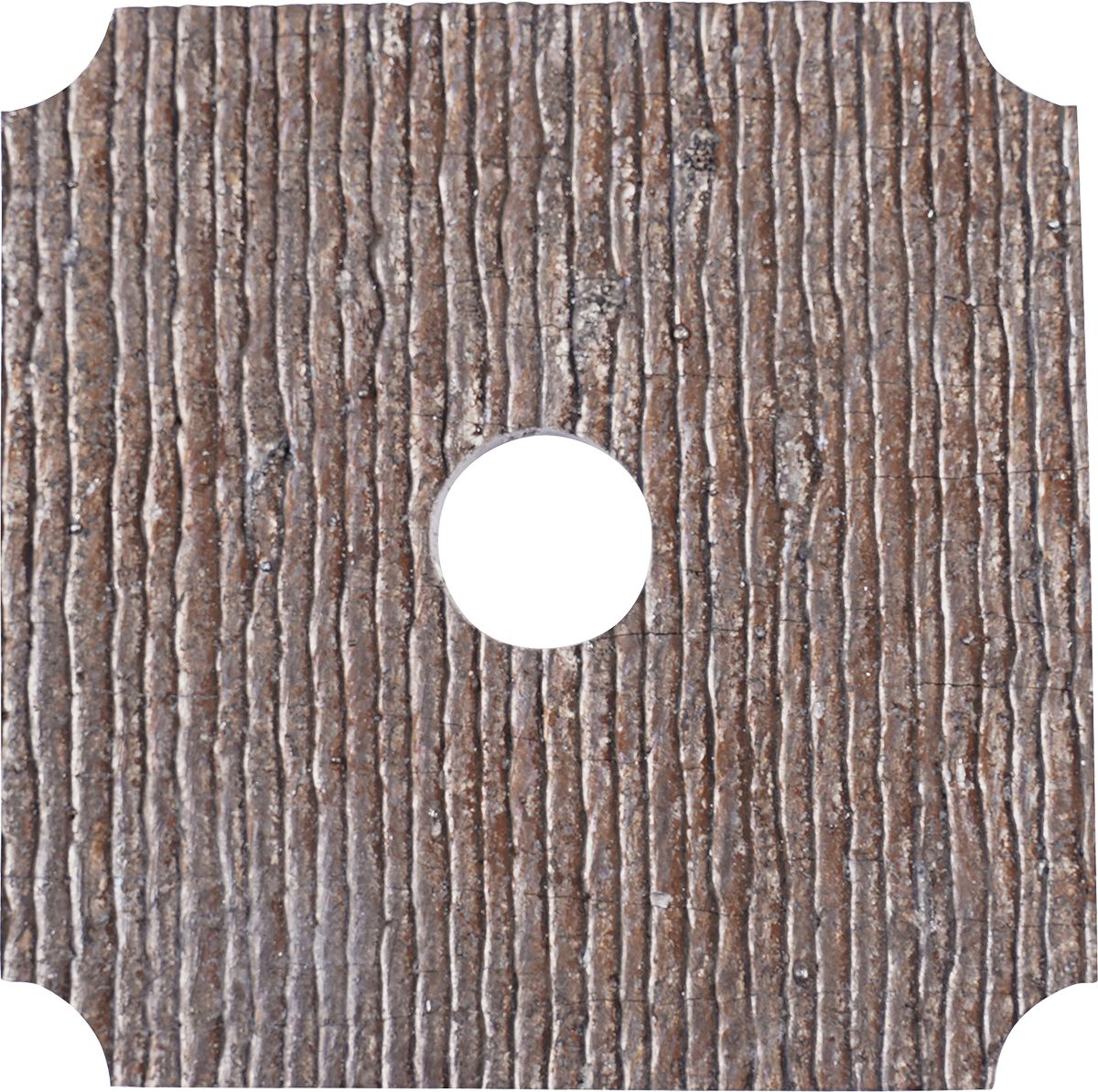

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
10)
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: LE-129
Frequently Bought Together
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
3/16 on 3/16 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate Kit
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910404 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 4 " |
| Size | 4" x 4" x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 5.83 lb |
