Liquidtight Strain Relief Connector, 1/4" Hub Size, Mini Standard, Nylon, Neoprene Bushing, Corrosion-Resistant
(Pack of
1)
• Corrosion-resistant nylon

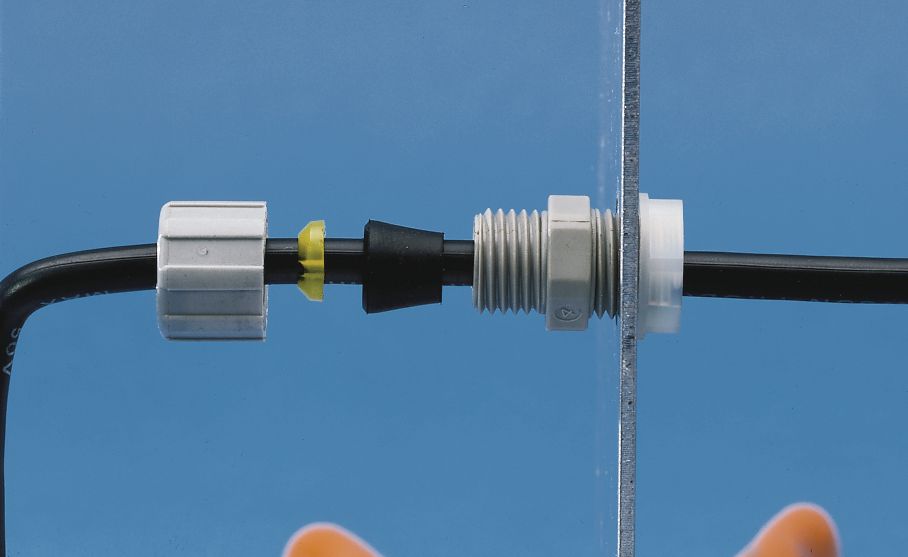

• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-86
Frequently Bought Together
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Extension Cord 10A 125V 100'
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Extension Cord Tri-Tap Adapter 15A 125V
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/8" Mini Arc
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Mini Arc
Couldn't load pickup availability
Product Description
• Corrosion-resistant nylon• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Technical Specifications
| Item#: | 95413 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 0.200 - 0.265 |
| Diameter Range | 0.200 - 0.265 " |
| Dimension A | 0.650 " |
| Dimension B | 1.30 " |
| Dimension C | 0.400 " |
| Dimension D | 0.285 " |
| Hub Size | 1/4 " |
| Approvals | UL, CSA |
| Form Size | F-00 |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
