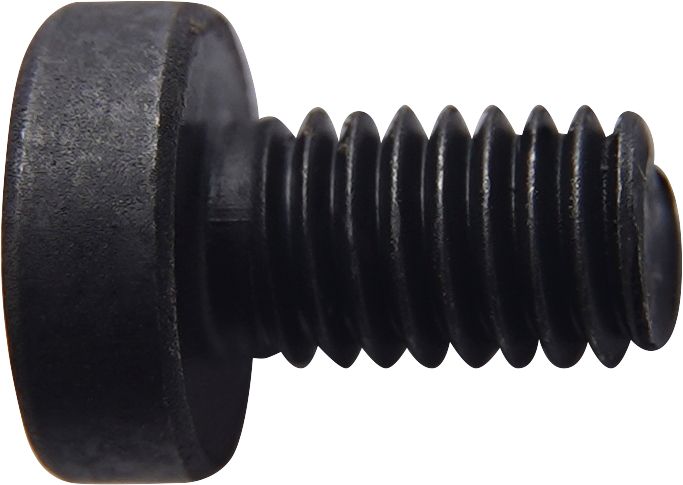

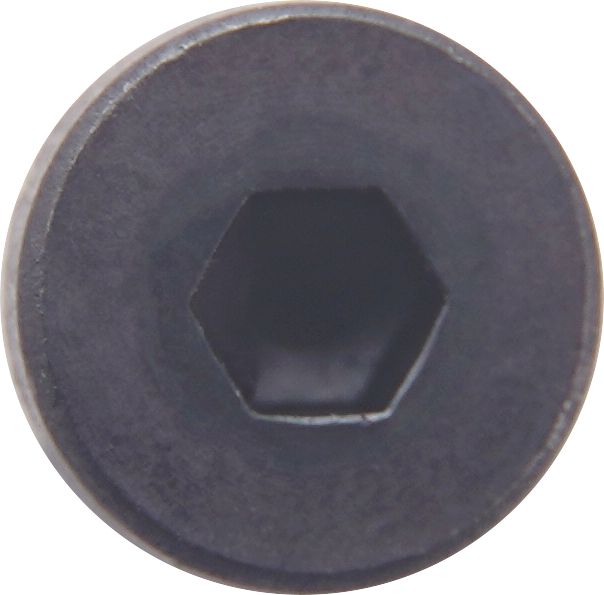

Low Head Socket Cap Screw, Grade 8.8, Alloy Steel, Black Oxide Finish, Coarse Thread, 8mm Hex Key, M12-1.75 x 40mm
(Pack of
25)
SKU:60409 Item#: 60409
• Alloy steel
• Black finish
• DIN 7984
• 830 MPa (120,000 PSI) minimum ultimate tensile strength
Couldn't load pickup availability
Catalog page#: 4-18
Frequently Bought Together
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability

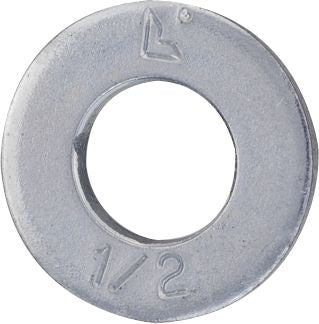

Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Low Head Socket Cap Screw Steel M8-1.25 x 40mm
Couldn't load pickup availability
Low Head Socket Cap Screw Steel M16-2 x 35mm
Couldn't load pickup availability
Low Head Socket Cap Screw Steel 3/8-16 x 3/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability

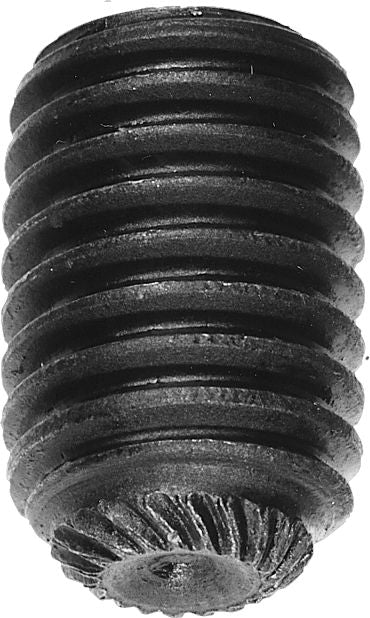

Set Screw Cup Point Steel 1/4-20 x 1/4"
Couldn't load pickup availability
Socket Head Cap Screw A2 SS M6-1 x 20mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 25mm
Couldn't load pickup availability
Product Description
• Alloy steel• Black finish
• DIN 7984
• 830 MPa (120,000 PSI) minimum ultimate tensile strength
Technical Specifications
| Item#: | 60409 |
|---|---|
| Diameter | M12 |
| Head Height | 7 mm |
| Thread Pitch | 1.75 mm |
| Length | 40 mm |
| Head Style | Low Head |
| Finish | Black Oxide |
| Material | Alloy Steel |
| Grade | 8.8 |
| Thread | Coarse |
| Tensile Strength | 830 MPa |
| Key Size | 8 mm |
| Drive | Hex |
| Type | Low Head Socket Cap Screw |
| Size | M12-1.75X40 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | No |
| Weight: | 2.19 lb |
