Home Fittings Made In USA Street Elbow Malleable Iron 3/4-14 x 3/4-14
Fittings

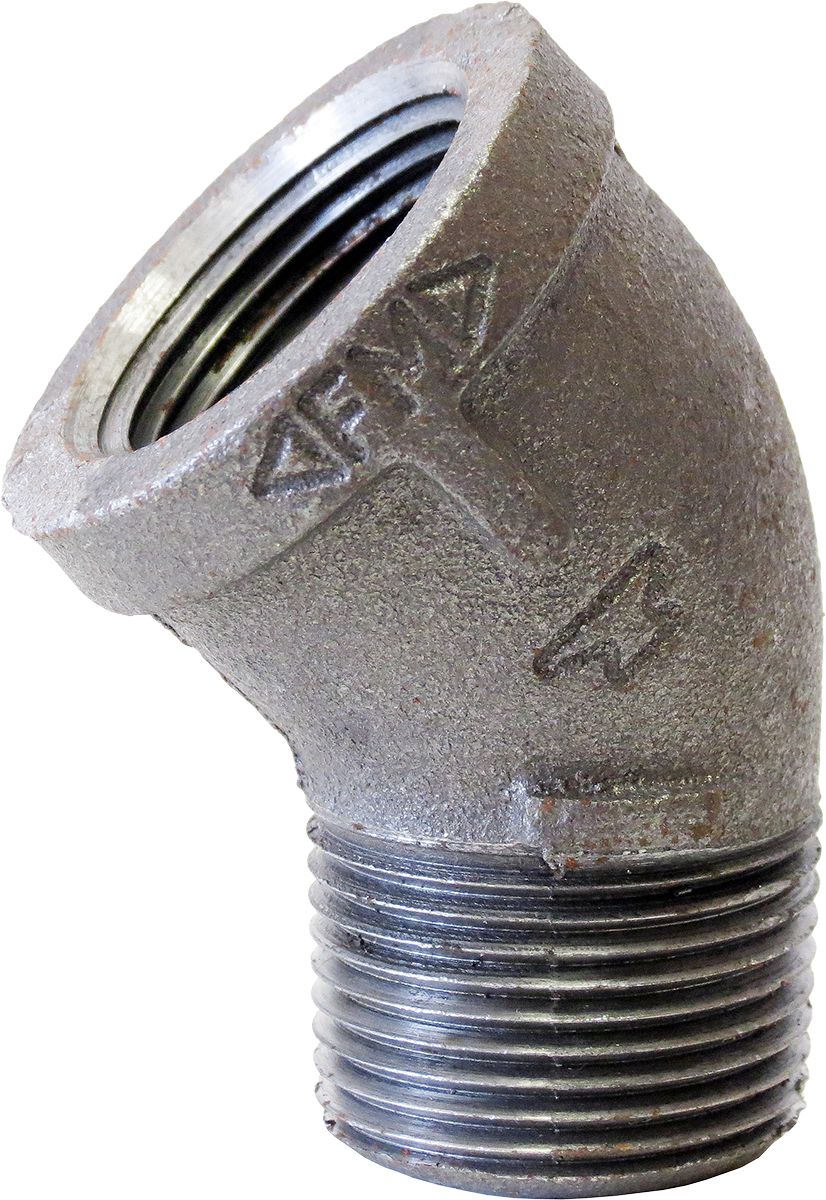

Made In USA Street Elbow Malleable Iron 3/4-14 x 3/4-14
(Pack of 1.0)

Lawson Products

150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Frequently Bought Together


Hex Head Plug Brass 1/2-14 Male NPT

Item#: 5365

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

Hex Head Plug Brass 1/4-18 Male NPT

Item#: 5363

Hex Bushing Steel 1/2-14 x 1/4-18

Item#: 80365

Pipe Nipple Steel Black 1/4-18 x 1/4-18

Item#: 8695

Hex Bushing Steel 3/4-14 x 1/2-14

Item#: 8666

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

Butt Connector 16 to 14 AWG Blue

Item#: 92823

High Solids Paints Gloss Black

Item#: 1509224

Product Description

150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved

Technical Specifications

Item#: 1638016
Fitting Type Pipe
Material Malleable Iron
Class 150 lb.
Configuration Street Elbow
Angle 45 °
Connection Type A x B Male NPT x Female NPT
Fitting Dimension A 3/4-14
Fitting Dimension B 3/4-14
Finish Black
Quantity Per Package 1 ea.
UNSPSC #: 40172806
TAA Compliant: Yes
Weight: 0.35 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
