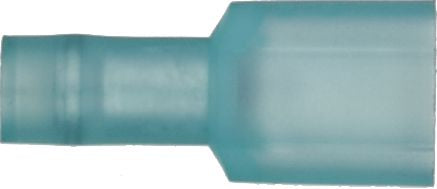

Male Quick Slide Terminal, Fully Insulated, Nylon, 16 to 14 AWG, 3/16" Tab Width, Blue
(Pack of
25)
SKU:86049 Item#: 86049
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Couldn't load pickup availability
Catalog page#: 17-21
Frequently Bought Together
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear 1/4" Stud
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Technical Specifications
| Item#: | 86049 |
|---|---|
| Type | Crimp |
| Wire Gauge | 16-14 AWG |
| Tab Width | 3/16 " |
| Connection Type | Male |
| Color | Blue |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
