Home Fasteners Multi-Grip Rivet 120° Countersunk Head 1/8"
Fasteners

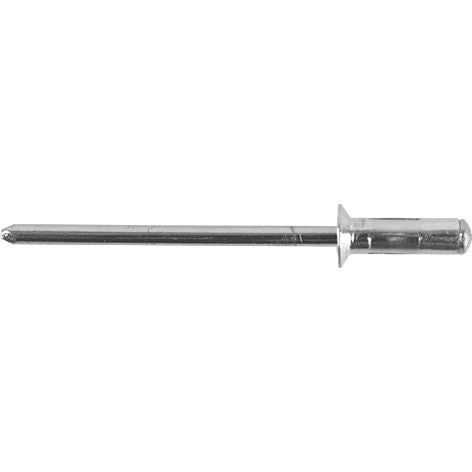

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.093 to 0.25" Grip Range, 0.383" Body Length
(Pack of 100)

Lawson Products

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 7-12

Frequently Bought Together


Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543600

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543602

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543601

Multi-Grip Rivet Dome Head Aluminum 1/8"

Item#: 1979

Structural Rivet Internal Lock Steel 1/4"

Item#: 90482

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1966

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543584
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body/Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.093 – 0.250 "
Hole Size 0.129 – 0.138 "
Head Diameter 0.209 "
Head Height 0.029 "
Body Length 0.383 "
Shear Strength 165 lb
Tensile Strength 230 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.2205 lb
