Home Fasteners Multi-Grip Rivet Dome Head Aluminum 3/16"
Fasteners

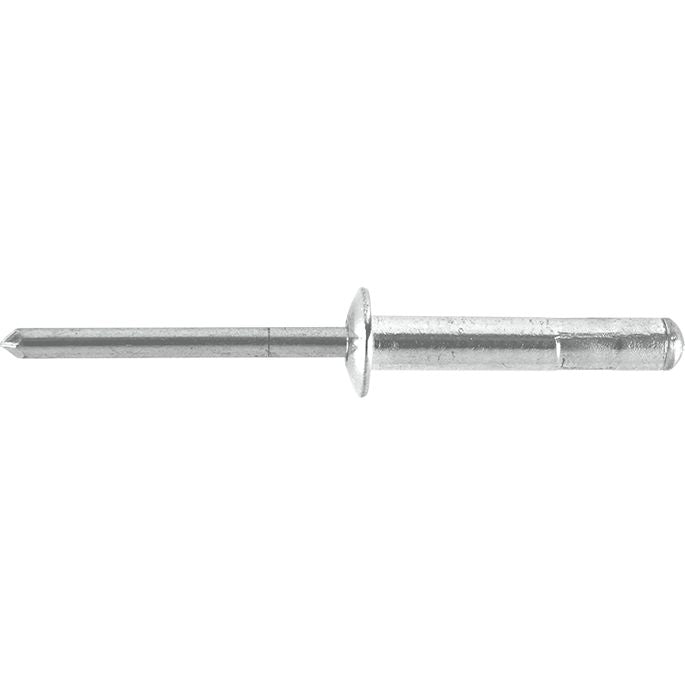

Multi-Grip Rivet Dome Head Aluminum 3/16"
(Pack of 100.0)

Lawson Products

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 7-12

Frequently Bought Together


Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"

Item#: 601

Hex Nut Grade 8 Alloy Steel 7/16-14

Item#: A103

Hex Nut Grade 8 Steel 1/4-20

Item#: FA68400

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543593

Multi-Grip Rivet 120° Countersunk Head 5/32"

Item#: 1543585

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543589

Multi-Grip Lockbolt Assortment 1600Pcs

Item#: CT2002BL

Replacement Jaw Set for 51898 Rivet Tool

Item#: 53290

Pull Rivet Dome Head Aluminum 5/32"

Item#: P61723M01

3310 LED Glow Light 3x AA 6.14" Green/Glow

Item#: 1474672

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543601
Type Multi-Grip
Head Style Dome Head
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.500 – 0.750 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.386 "
Head Height 0.057 "
Body Length 0.978 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.79 lb
