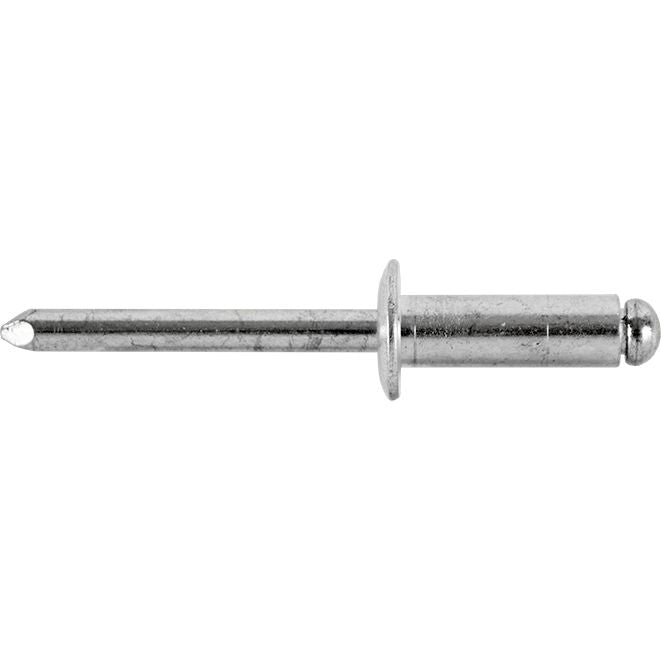

Open End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/4" Diameter, 0.376 to 0.5" Grip Range, 0.75" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-6
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Open End Rivet Dome Head Steel 5/32"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 85109 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 88 |
| Hole Size | 0.257 – 0.261 " |
| Drill Size | F |
| Head Diameter | 0.500 " |
| Head Height | 0.080 " |
| Body Length | 0.750 " |
| Shear Strength | 700 lb |
| Tensile Strength | 920 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
