Home Fasteners Multi-Grip Rivet Dome Head Aluminum 3/16"
Fasteners

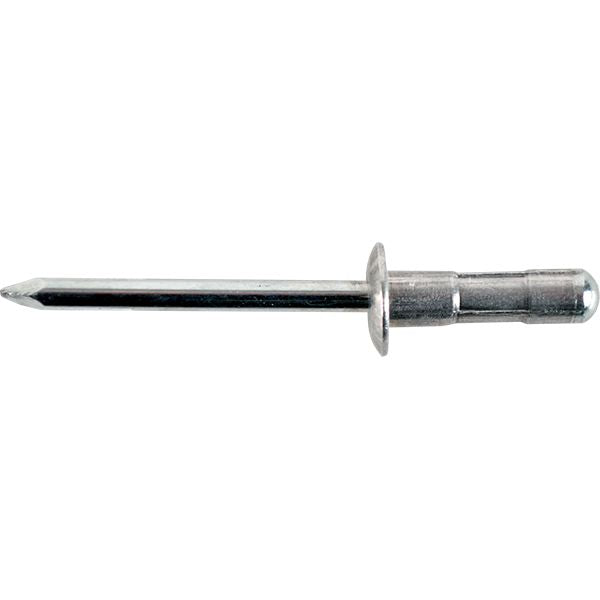

Multi-Grip Rivet Dome Head Aluminum 3/16"
(Pack of 100.0)

Lawson Products

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 7-12

Frequently Bought Together


SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543589

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543599

Multi-Grip Rivet Dome Head Aluminum 5/32"

Item#: 1980

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1966

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1984

Open End Rivet Dome Head Steel 3/16"

Item#: 1944

Butt Connector 16 to 14 AWG Blue

Item#: 92823

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

Nylon Cable Tie 4" Black

Item#: 94609

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1981
Type Multi-Grip
Head Style Dome Head
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.062 – 0.250 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.386 "
Head Height 0.057 "
Body Length 0.406 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.65 lb
