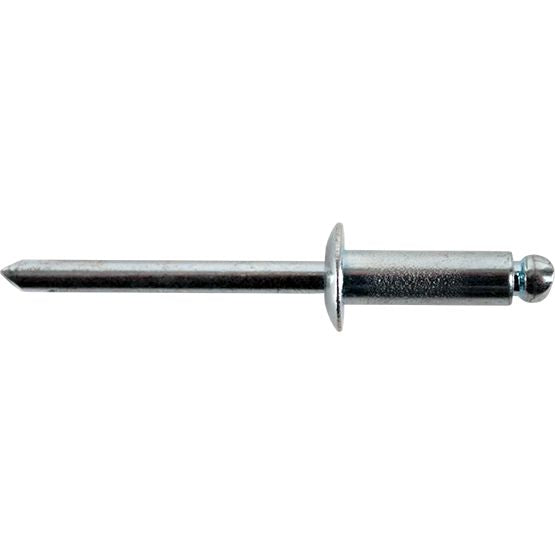

Open End Rivet, Dome Head, Steel, 3/16" Diameter, 0.02 to 0.125" Grip Range, 0.325" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-8
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1944 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.020 – 0.125 " |
| Industry Number | 62 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.325 " |
| Shear Strength | 540 lb |
| Tensile Strength | 680 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.86 lb |
