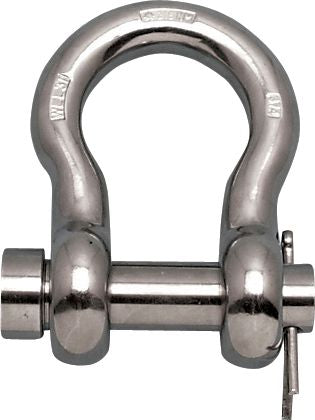

Home Hardware Oversize Round Pin Anchor Shackle, Stainless Steel, 1/2", 3,000 lb WLL
Hardware

Anchor Shackle, Oversize Round Pin, Stainless Steel, 1/2", 3,000 lb WLL
(Pack of 2)

Lawson Products

Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 1
CAUTION: Do not exceed working load limits.

Read More

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 15-23

Frequently Bought Together


Shoulder Eyebolt, Machinery, Self-Colored, M14 x 2.0 x 44.5

Item#: 1442253

S-Hook Zinc Plated Heavy Steel 1-1/2" Length

Item#: 1595

S-Hook Zinc Plated Heavy Steel 1-3/4" Length

Item#: 1596

Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL

Item#: 1429879

Connecting Link, Single Strand, Steel, Industry No. 50

Item#: 85372

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887

Screw Pin Anchor Shackle, 7/16", 3,000 lb WLL

Item#: 1424881

Oversize Round Pin Anchor Shackle, Stainless Steel, 5/8", 4,000 lb WLL

Item#: 1427357

Oversize Bolt Anchor Shackle, Stainless Steel, 1/2", 3,000 lb WLL

Item#: 1427376

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Alu-Master 8-Way Torpedo Level

Item#: DY89310410

Utility Knife, Folding , 4" Closed

Item#: FA5474

Product Description

Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 1
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1427356
Type Anchor Shackle
Style Round Pin
Body Material 316-NM Stainless Steel
Size 1/2 "
Working Load Limit 3,000 lb
Pin Diameter 5/8 "
Pin Material 316-NM Stainless Steel
Width Between Eyes 13/16 "
Bow Width 1-3/16 "
Depth 1-7/8 "
UNSPSC #: 31301408
TAA Compliant: No

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
